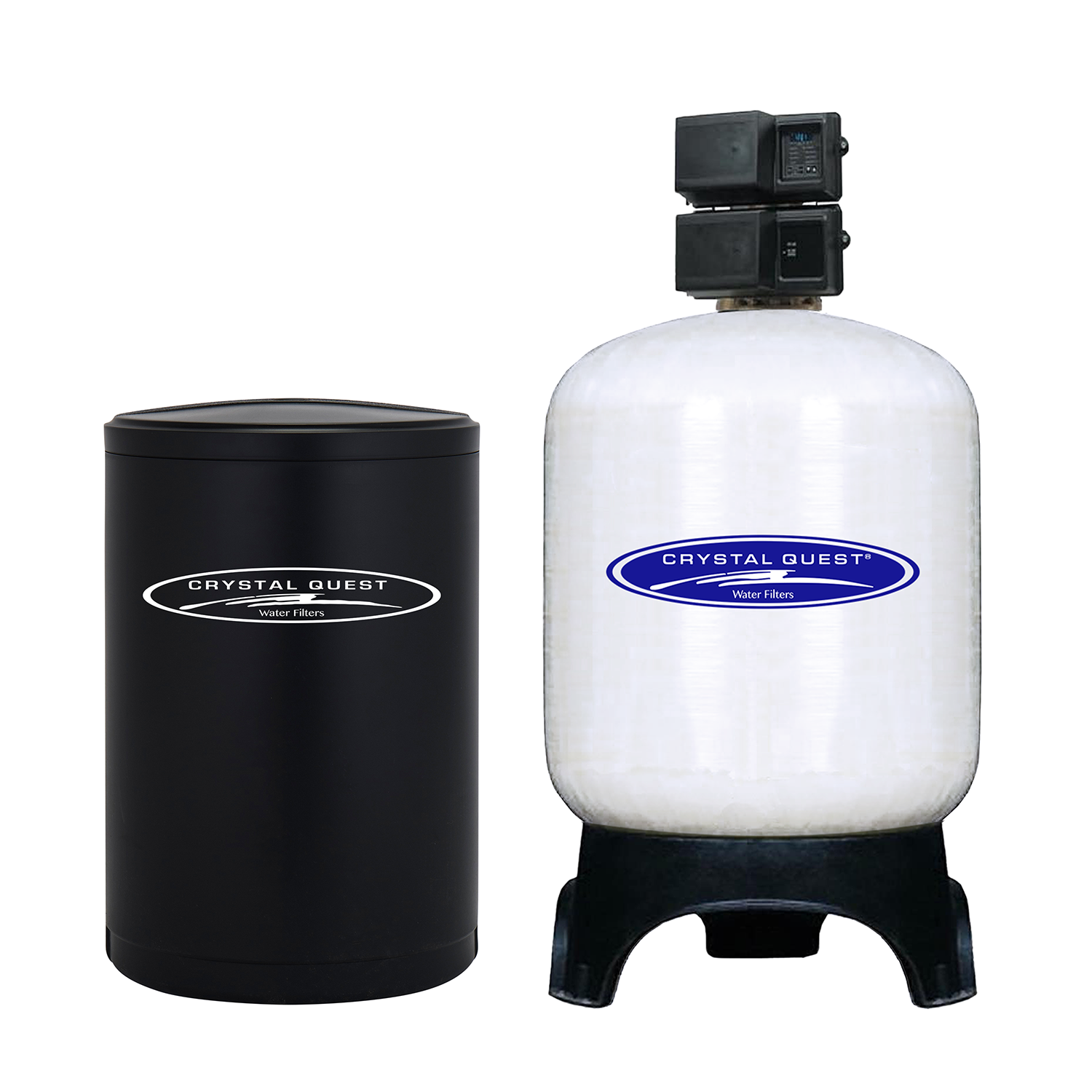

Commercial Water Softener System (900,000 Grains) - Single 30 cu.ft.
Commercial Water Softener System (900,000 Grains) - Single 30 cu.ft.
Couldn't load pickup availability
Share
Features
- Timer Control Valves
- Heavy duty composite fiberglass tanks
- High Flow Distributor
- All brass, motor driven control valve with fully adjustable backwash cycles
- Self-adjusting backwash controller
- Flow controller to limit backwash flow
Benefits
- Reduced water consumption
- Engineered for commercial & industrial use
- Maintence-free operation with the self-adjusting backwash controller
- Certification Test
Add-Ons*
- Metered Control Valve
- Backwash bypass
- 3200NT Controller
- NXT Upgrade Controller
- Duplex parallel, twin alternating, triplex (progressive)
- Optional skid mounting for tanks
*If you are interested in our available add-ons, please call to have them added to your system.
Compatible Valves:
GPM:185 - 205
3900 Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
3900 Automatic Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
###
| Specification | CQE-CO-02039 | CQE-CO-02041 | CQE-CO-02043 | CQE-CO-02044 | CQE-CO-02045 | CQE-CO-02046 | CQE-CO-02047 | CQE-CO-02048 | CQE-CO-02049 | CQE-CO-02050 | CQE-CO-02050A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Service Flow (GPM) | 9-11 | 10-13 | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 245 | 390 |
| Backwash FLow (GPM) | 4 | 4 | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 | 75 |
| Pipe Size | 1" | 1" | 1" | 1.5" | 1.5" | 2 | 2" | 2" / 3" | 3" | 3" | 3" |
| Electronic Control Valve | 5600 | 5600 | 2510 | 2850 | 2850 | 2900 | 2900 | 3150 / 3900 | 3900 | 3900 | 3900 |
| Filter Media Volume | 1.5 ft³ | 2 ft³ | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 60 ft³ |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Grain Capacity | 45,000 | 60,000 | 90,000 | 120,000 | 210,000 | 300,000 | 450,000 | 600,000 | 900,000 | 1,200,000 | 1,800,000 |
| Brine Tank Capacity | 130L / 36G | 130L / 36G | 300L / 79G | 300L / 79G | 500L / 132G | 800L / 211G | 1000L / 265G | 1500L / 396G | 2000L / 528G | 2000L / 528G | 2000L / 528G |
| Mineral Tank Size (in.) | 10" x 54" | 12" x 52" | 14" x 65" | 16" x 65" | 21" x 62" | 24" x 72" | 30" x 72" | 36" x 72" | 42" x 72" | 48" x 72" | 63" x 83" |
| Brine Tank Dimensions | 18" x 33" | 18" x 33" | 23” x 47” | 23” x 47” | 29” x 52” | 34” x 53” | 39” x 55” | 51” x 52” | 51” x 63” | 51” x 63” | 51” x 63” |
| Space Required (in.) (L x W x H) | 30" x 20" x 64" | 32" x 20" x 62" | 39" x 25” x 75" | 41" x 25” x 75" | 53" x 31” x 84" | 58" x 36” x 95" | 71" x 41” x 95" | 91" x 53” x 192" | 98" x 53” x 192" | 103" x 53” x 192" | 118" x 53” x 203" |
| Quartz (lbs.) | 15 | 20 | 30 | 40 | 70 | 120 | 150 | 300 | 300 | 450 | 1800 |
###
| Replacement Media | |
|---|---|
| Product Name | SKU |
| Eagle Water Softener Resin | CQE-RM-05002 |
| Eagle Multimedia | CQE-RM-05001 |
###
Product Manual
Water Softener Product Data Sheet
Water Softener Safety Data Sheet
