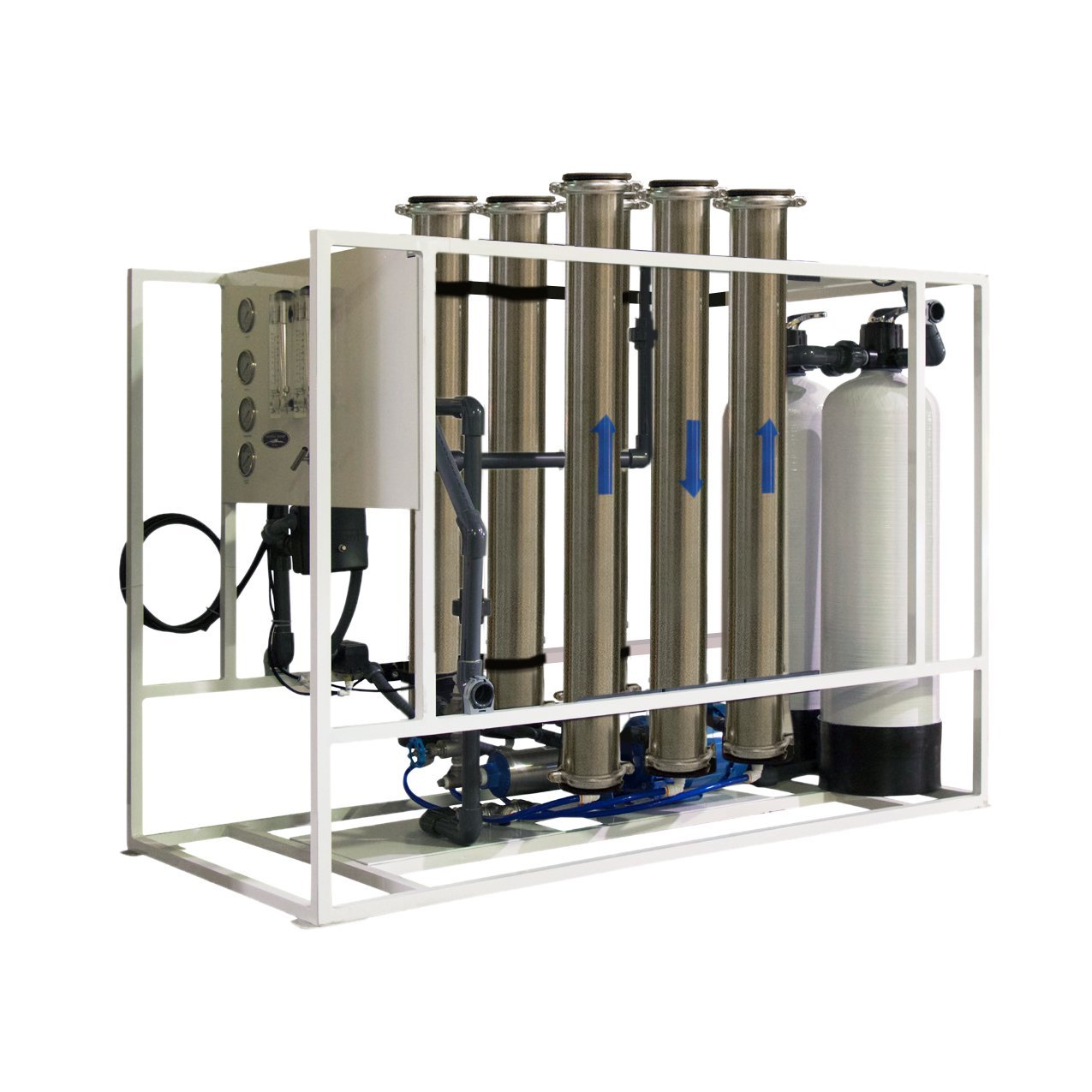

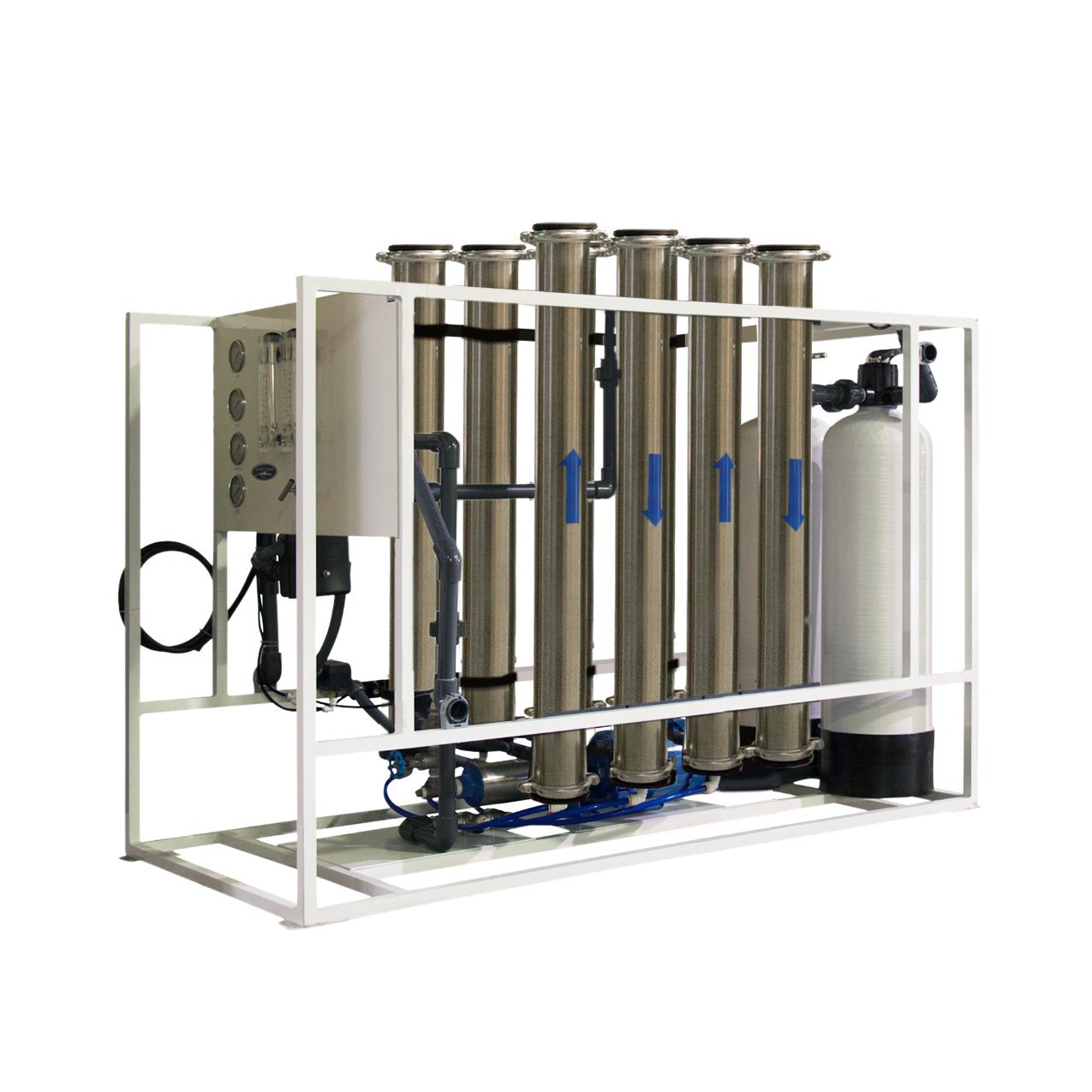

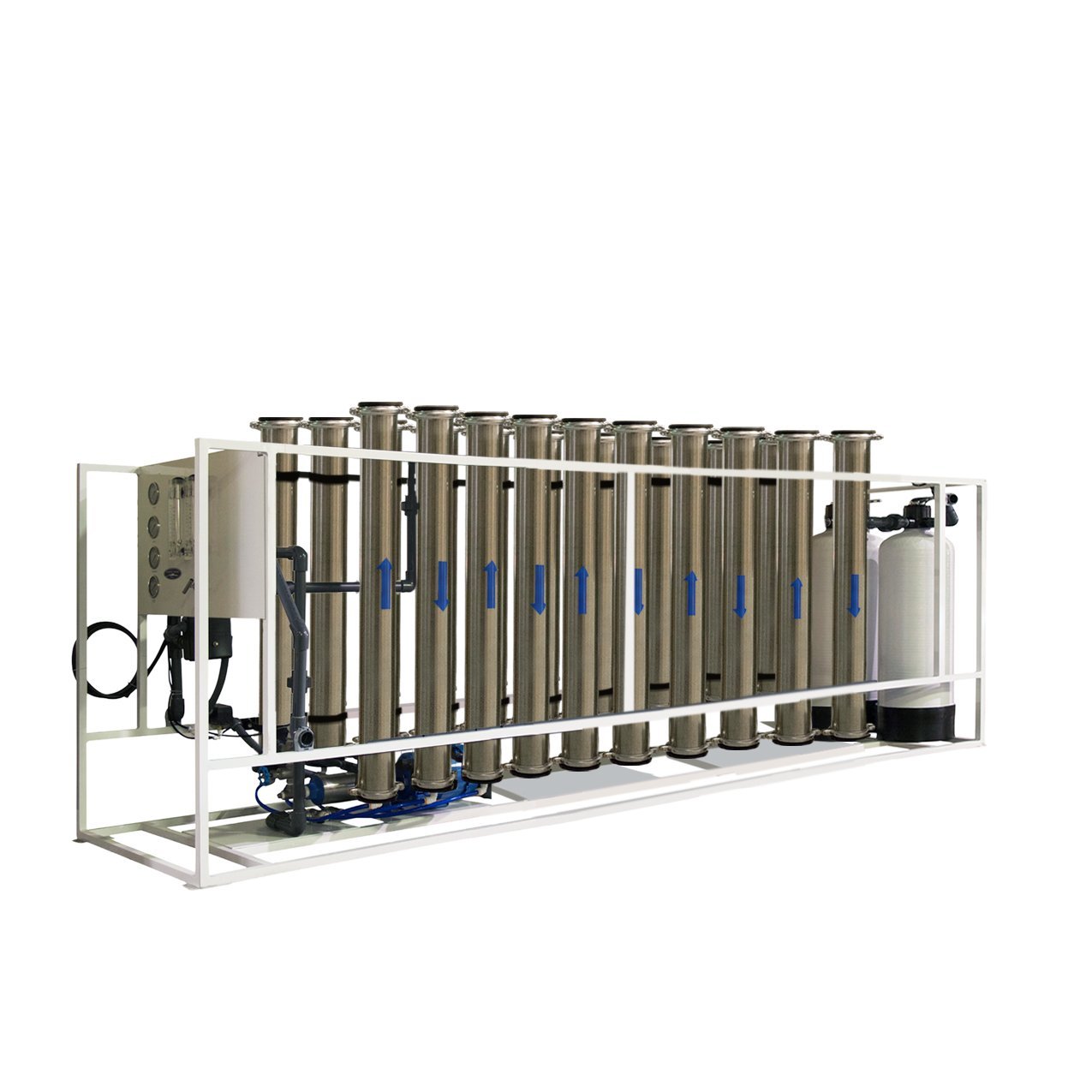

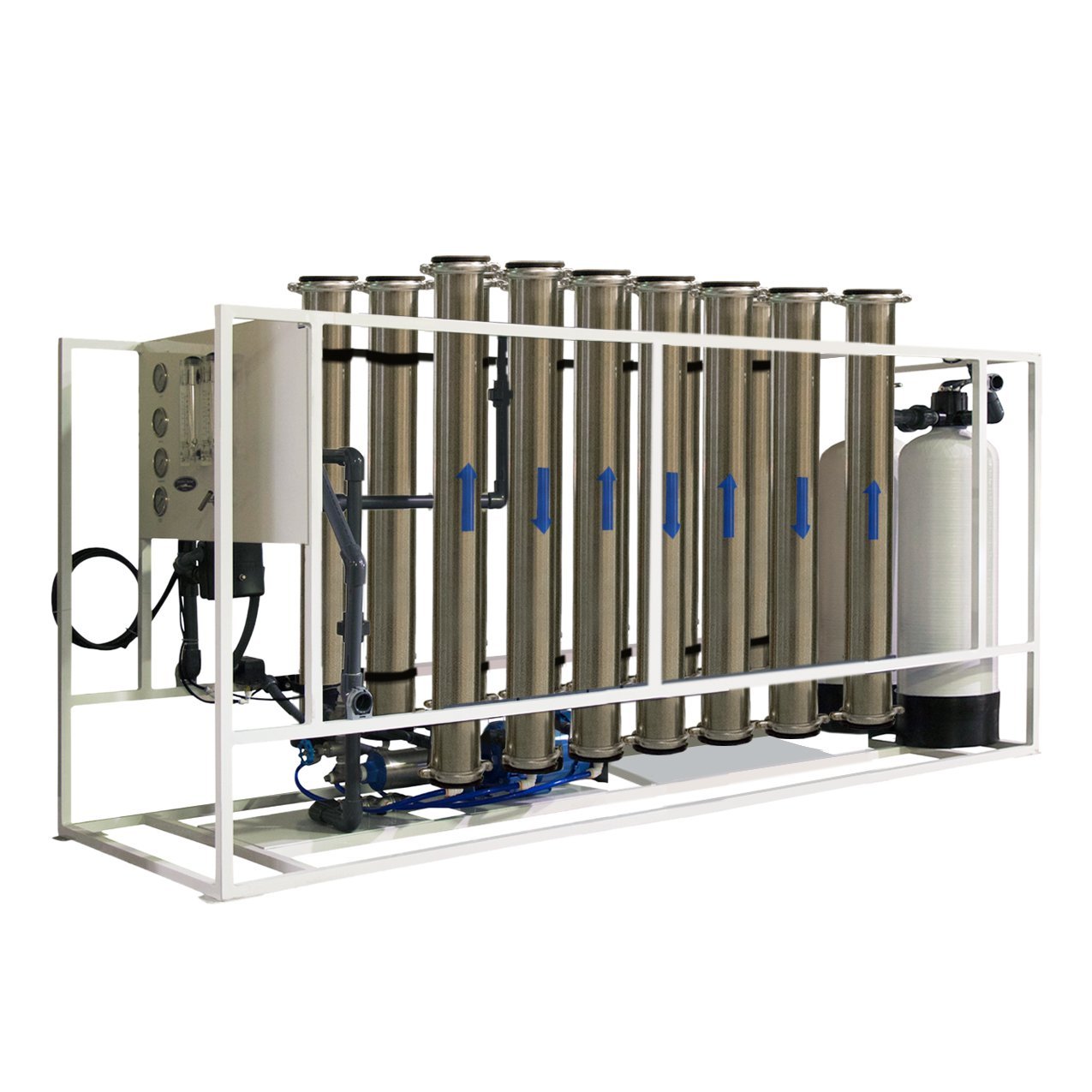

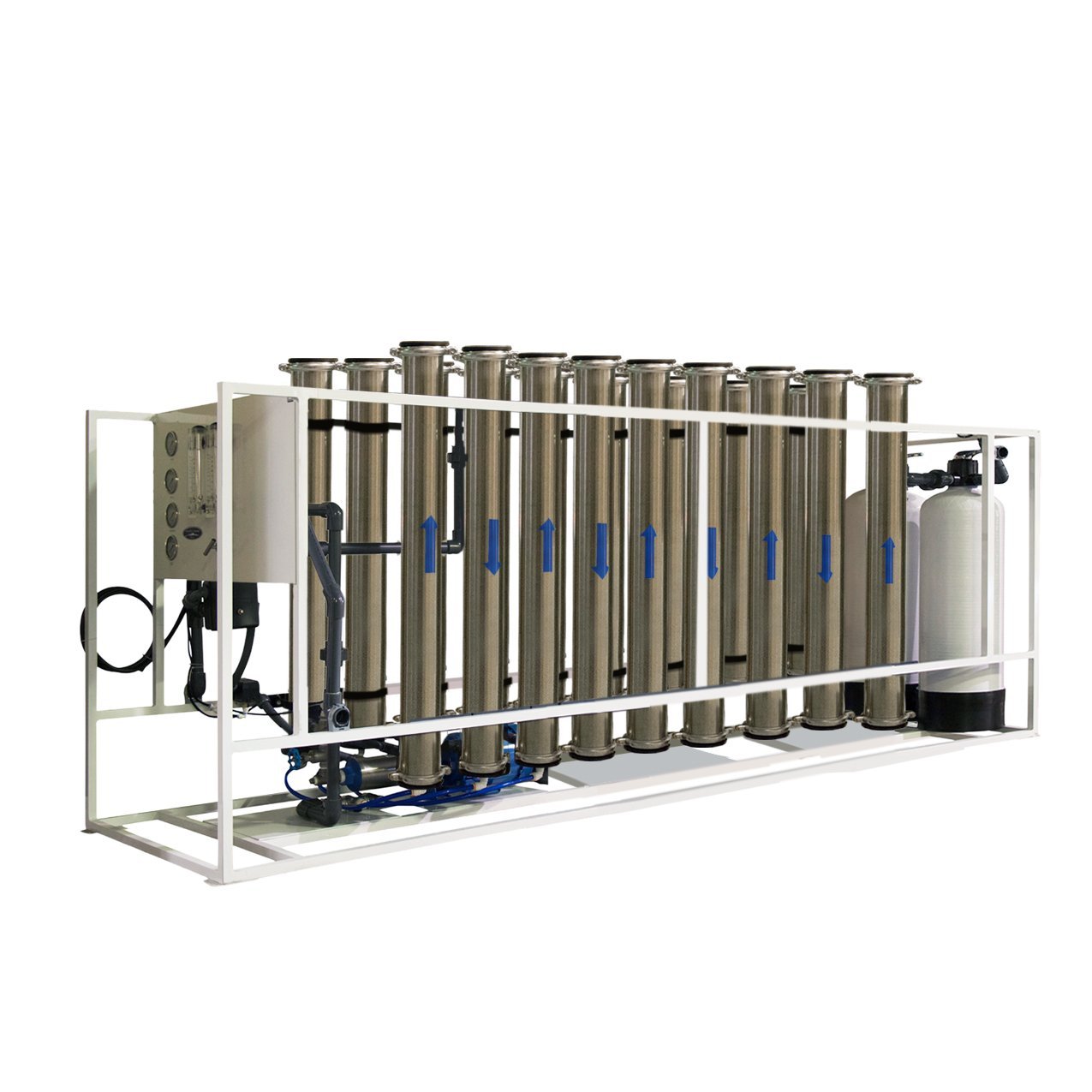

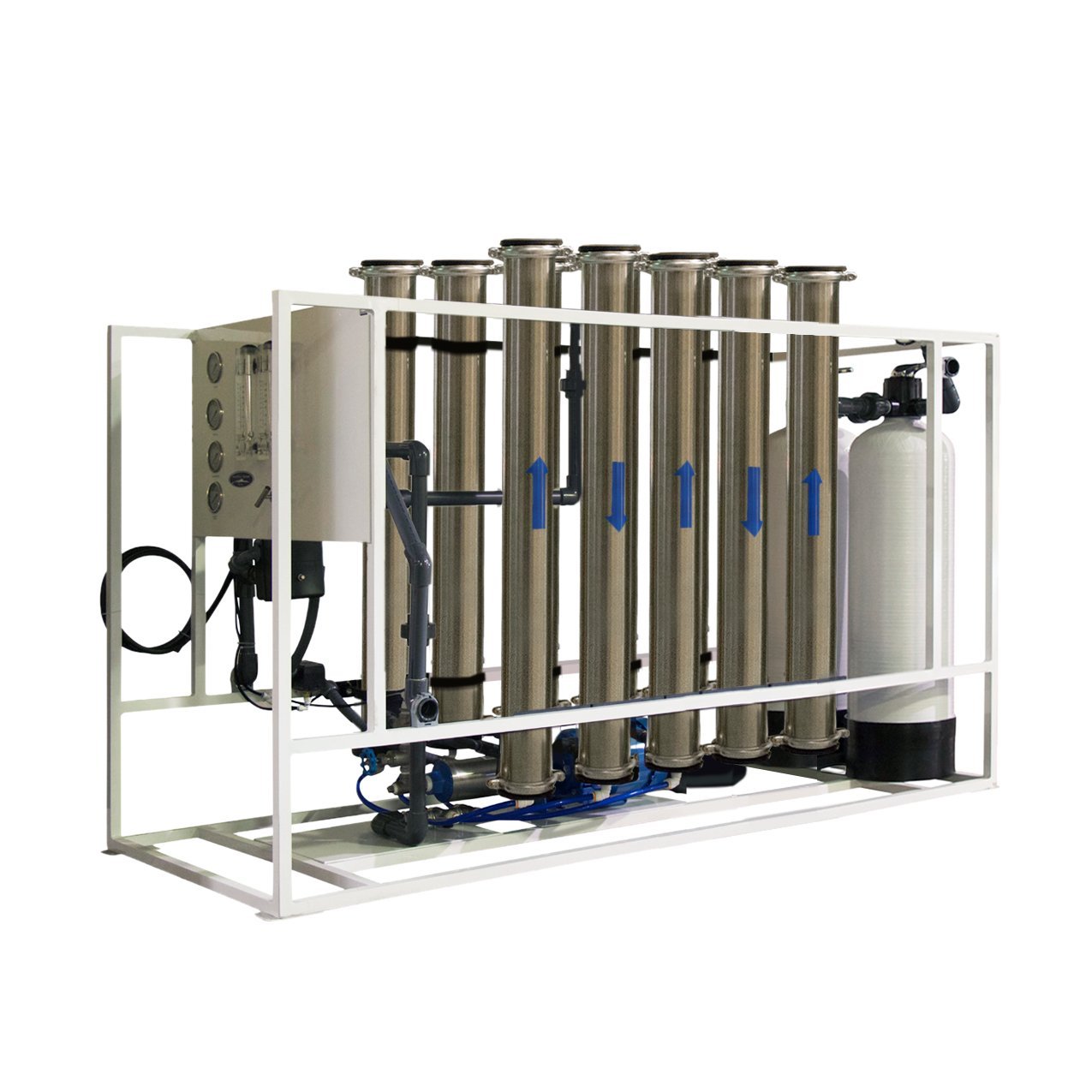

High-Flow Reverse Osmosis System 10,000 GPD - 50,000 GPD

Standard Features:

• Thin Film Composite Membranes
• Stainless Steel Membrane Housings
• Centrifugal Pump
• 1.5 or 2.0 cubic foot vessels with .5 Micron Zeolite (Turbidity/ Sediment Removal)
  & Coconut Shell Granulated Activated Carbon
• Low & High-Pressure Shut-Off Switch
• Auto Feed Shut-Off
• Flow Control
• Feed Pressure Gauges
• System Pressure Gauges
• Cleaning Ports
• Permeate Flowmeter
• Concentrate Flowmeter
• Permeate TDS Display
• Feed TDS Display
• Heavy Duty Coated Aluminum Frame
• C-150 Microprocessor Controller
  (standard no ethernet, but optional upgrade)

Benefits:

• Compact Space Saving
• Components Easily Accessible
• Expandable and Lightweight Design
• Fully Equipped and Customizable
• Pre-plumbed, wired, and assembled
• Low Operation Costs
• Low Maintenance Costs
• Easily Maintenance and servicing
• Factory Tested and Preserved
• CE Compliant
• 1-Year Limited Warranty
• Made in the USA

Automatically Controls:

• Motorized Actuated Feed Valve
• Delayed High-Pressure Pump Start-Up
• Automatic Shut-Down at Tank Full
• Low or High-Pressure Fault Shut-Down
• Pre-Treatment Lock-Out
• Feed Water Flush at Shut-Down
• High Product TDS Alarm Shutdown

Upgrades:

All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.

• Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
• Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
• SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
• SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
• SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
• C-150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display, and alarm function.
• Chemical Pump Outlet: Provide an integrated power source with the RO system for the connection of a chemical feed pump.
• Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
• Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
• 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
• Single Wood Crate

###

*All Systems come 110V unless requested otherwise

###

The Crystal Quest C-150 Microprocessor Controller has features and options to allow the OEM flexibility to meet many different specifications. The controller has five relay outputs, four dry contact inputs, and two TDS/conductivity inputs. A 2 line by 20 characters LED display provides the operating status of the RO unit along with the water quality, operating hours, and water temperature. This controller is standard for high-flow commercial reverse osmosis systems but has an additional upgrade option for ethernet integration.

The Crystal Quest C-200 Microprocessor Controller is a versatile controller for reverse osmosis systems that offer advanced features and options which make it an exceptional choice for large commercial and industrial reverse osmosis systems.

The Crystal Quest C-200 Controller has the flexibility to meet many specifications with six (6) switch inputs, five (5) analog inputs, six (6) relay outputs, and two (2) TDS/conductivity inputs. The 4 line by 20 character LCD display provides sensor readings, hours of operation, temperature, alarms, and operating status of the RO system.

Our Stainless Steel Membrane Pressure Vessels enhance system appearance and allow you to take full advantage of the membrane capability. These vessels are considered safer and more reliable than PVC pressure vessels. Designed for continuous long-term use as a pressure vessel for reverse osmosis, nanofiltration, and ultra-filtration elements which are used on typical commercial reverse osmosis water treatment systems at pressures up to 300 PSI.

###
