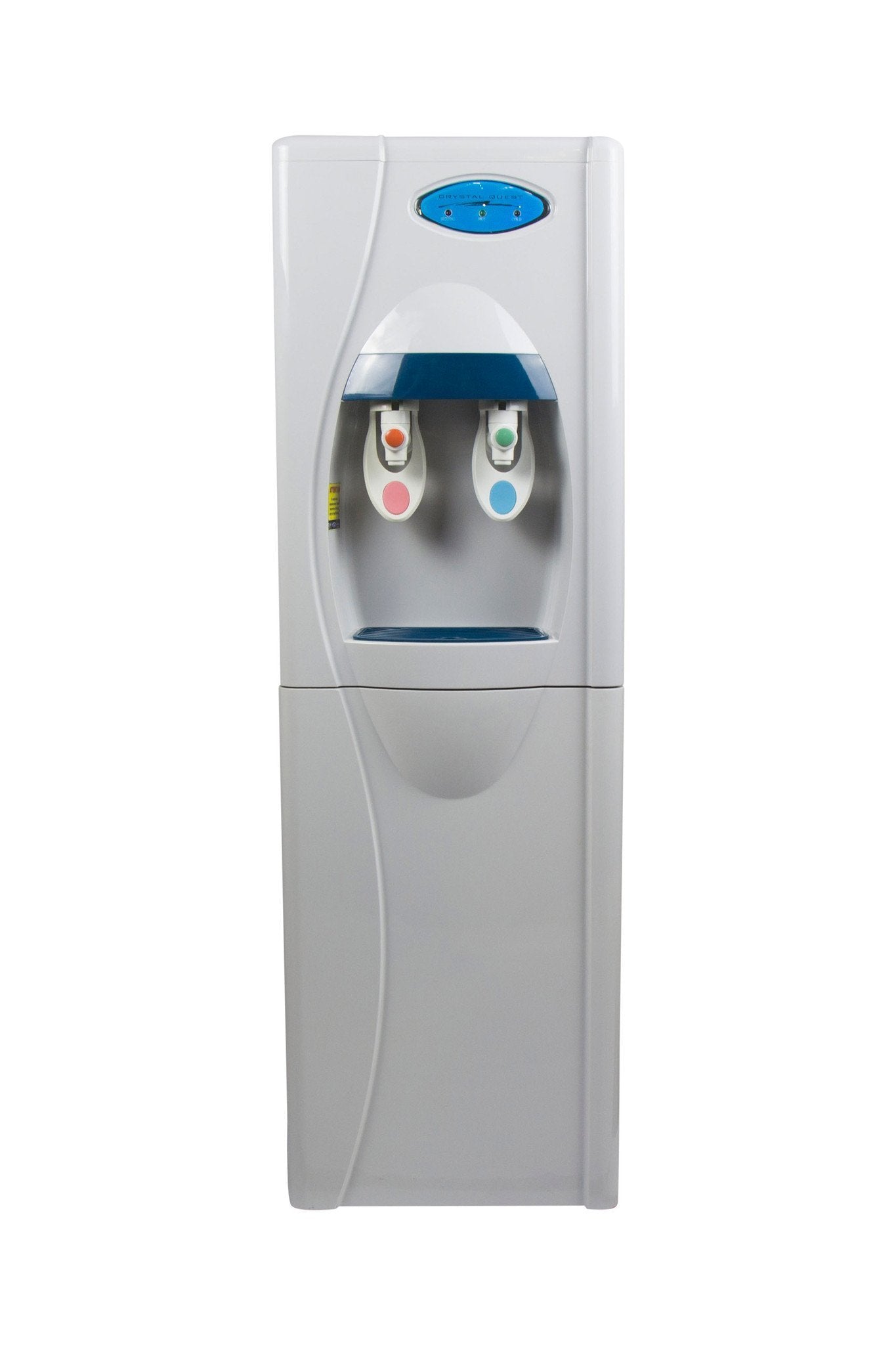

Hybrid Ultrafiltration + Reverse Osmosis Bottleless Water Cooler

Name: Hybrid Ultrafiltration + Reverse Osmosis Bottleless Water Cooler
Brand: Crystal Quest Water Filters
SKU: CQE-WC-00902
Price: 814.00 USD
Availability: InStock

$814.00 USD

Sale Sold out

Shipping calculated at checkout.

RETURN AND REFUND POLICY

View full details

UltraFiltration (UF)

What is UF? In the UF process, a fine membrane (.02 micron) partially addresses micro-organisms without wastewater to lower the Total Total Suspended Solids.

If you don’t have the additional RO membrane system, some TSS will be left behind. To eliminate a majority of TSS, a Reverse Osmosis membrane is suggested.

Reverse Osmosis (RO)

Reverse Osmosis Bottle-less Water Cooler UltraFiltration acts as the pre-treatment for the next stage of the even finer RO Treatment. RO is a water purification technology that uses a semipermeable membrane to remove larger particles & an array of contaminants. Similar to UF, although RO uses a different membrane. When water goes through the RO Membrane, leftover water hardness & contaminants that are too big to go through the UF & RO membrane will wash out through your drain line. (In the back of the water cooler, the system will connect to your kitchen drain for the wastewater.) The initial UF membrane is to help reduce the amount of Total Suspended Solids before the RO Treatment so less strain is put on the RO membrane. Read more about the membrane HERE.

	TURBO UF	TURBO UF/RO	SHARP UF	SHARP UF/RO	Hybrid UF	Hybrid UF/RO
No Plastic Jugs
Cold Water
Hot Water
Child Safety for Hot Water
UltraFiltration (UF)
Reverse Osmosis (RO)
Waste Water
Stainless Steel Holding Tank
Polypropylene Holding Tank

Features

Built-in filtration system
Separate hot/cold power switch
Automatic heating shut-off when hot temperature is reached
Automatic float valve
High efficiency sealed compressor cooling system
Adjustable cold water
Type 304 stainless steel hot and cold water tanks
Easy access front panel for service of Filter system
Easy to use and easy to clean

Specifications

Weight: 60 lbs. .
Dimensions: (D) 14.5” x (W) 14 3/4” x (H) 39.25”
Total reservoir capacity: 3.2 gallons
Heating power: 500W 6.2 Amps
Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
Hold water tank volume: 1.45 gal
Hot water tank volume: 0.5 gal
Cold water tank volume: 1.2 gal
Cooling capacity: 1.95 gal per hour 35-50°
Heating capacity: 1.5 gal per hour 185°F
Voltage: 110V-120V 50/60Hz
Pressure range: 30-60 psi (2.1-4.1bar)
Optimum service flow: 0.50 GPM at 60 psi (1.1 lpm at 4.1 bar)

###

Specifications

• Weight: 60 lbs.
• Dimensions: (D) 14.5” x (W) 14 3/4” x (H) 39.25”
• Total reservoir capacity: 3.2 gallons
• Heating power: 500W 6.2 Amps
• Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
• Hold water tank volume: 1.45 gal
• Hot water tank volume: 0.5 gal
• Cold water tank volume: 1.2 gal
• Cooling capacity: 1.95 gal per hour 35-50°
• Heating capacity: 1.5 gal per hour 185°F
• Voltage: 110V-120V 50/60Hz
• Pressure range: 30-60 psi (2.1-4.1bar)
• Optimum service flow: 0.50 GPM at 60 psi (1.1 lpm at 4.1 bar)

###
