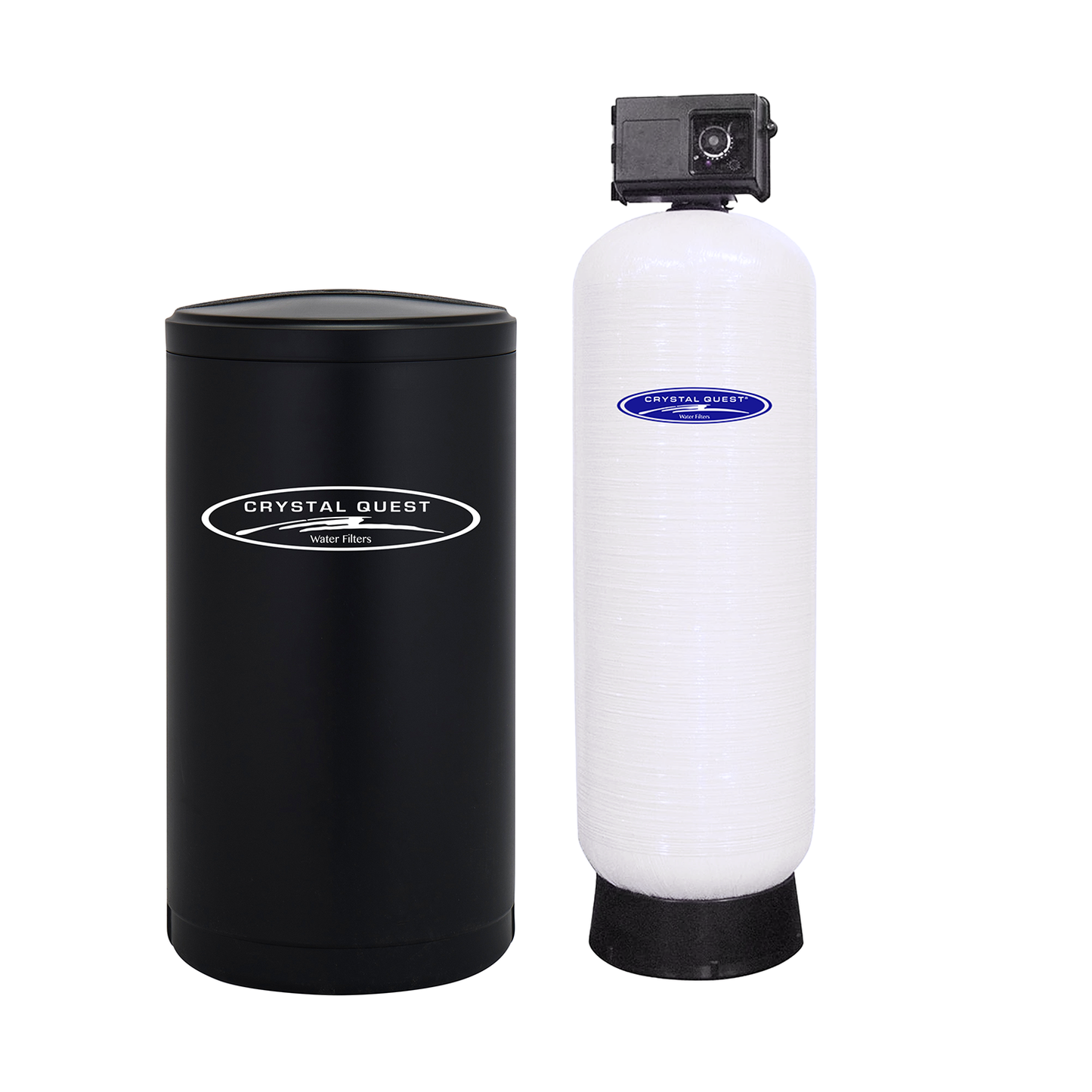

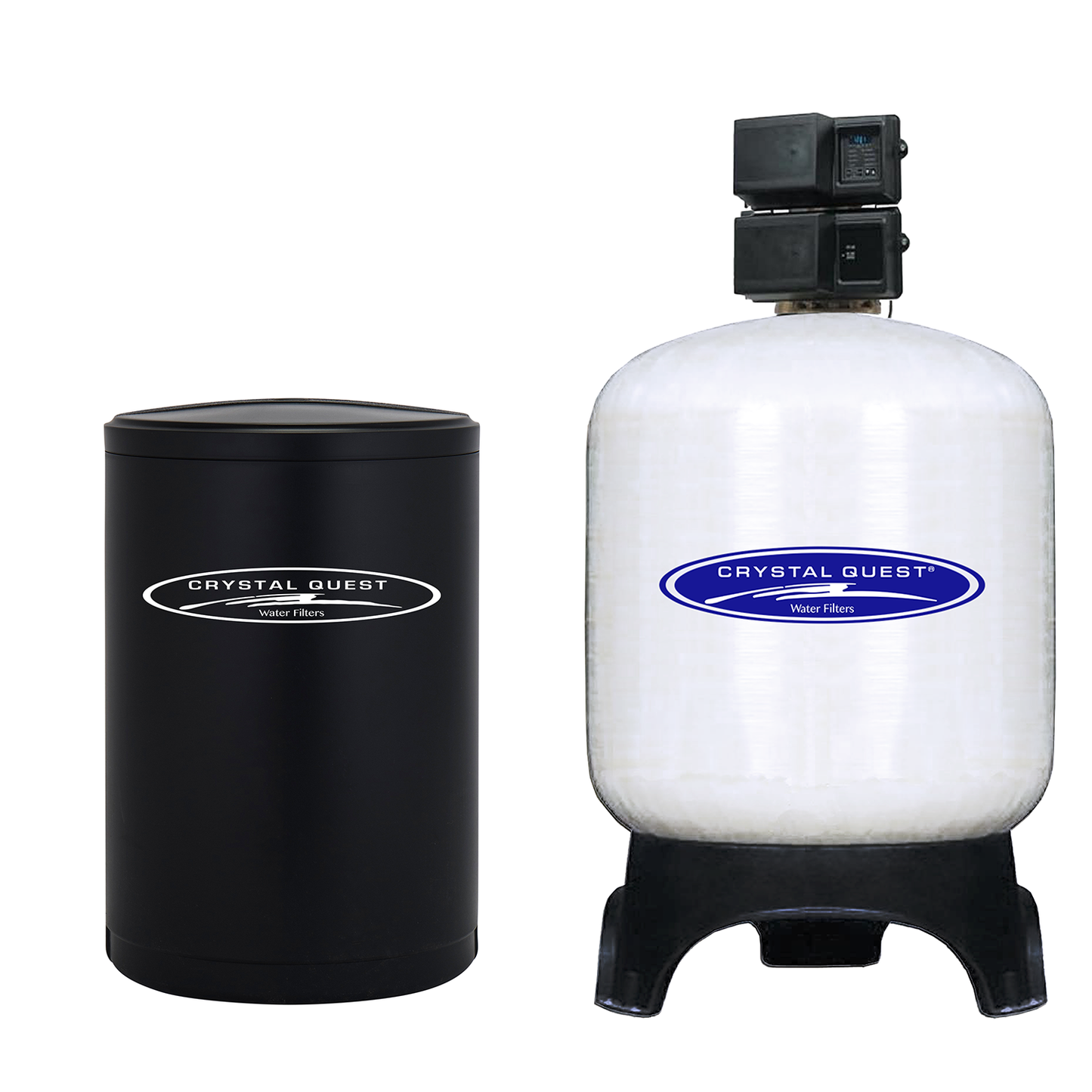

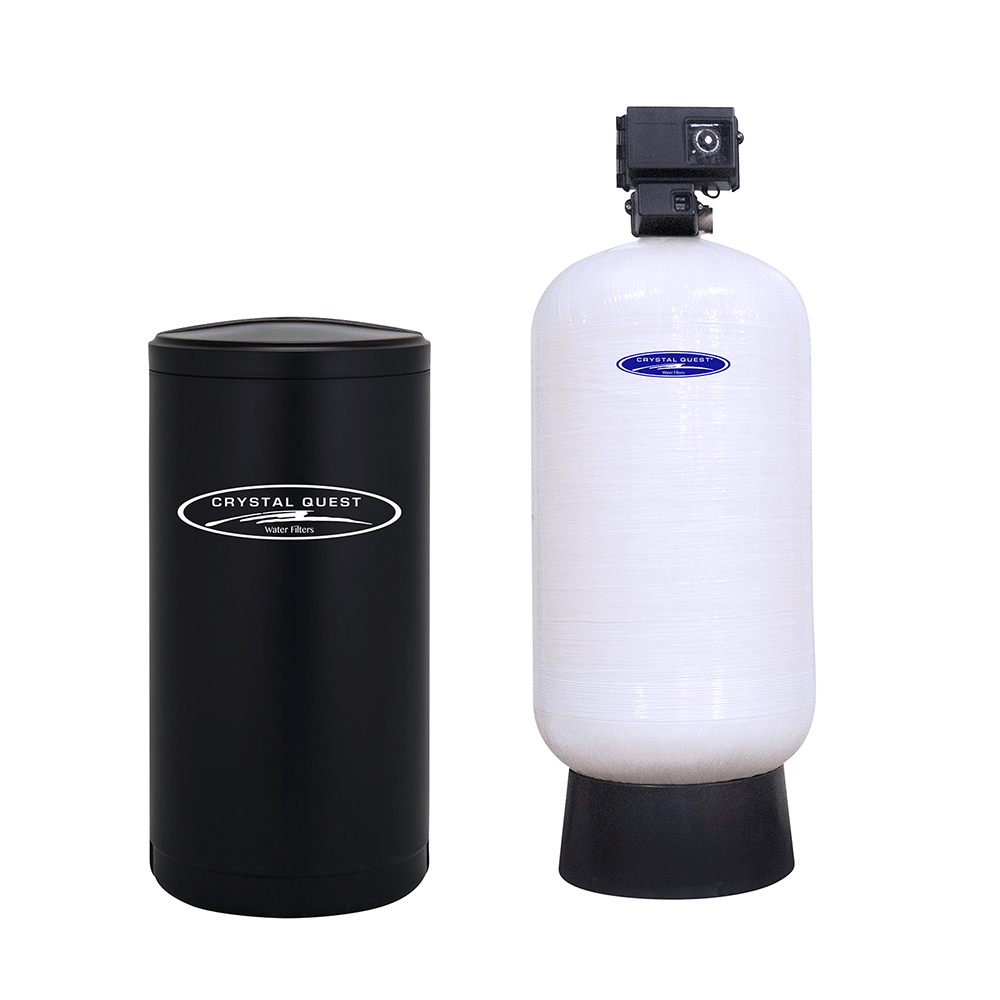

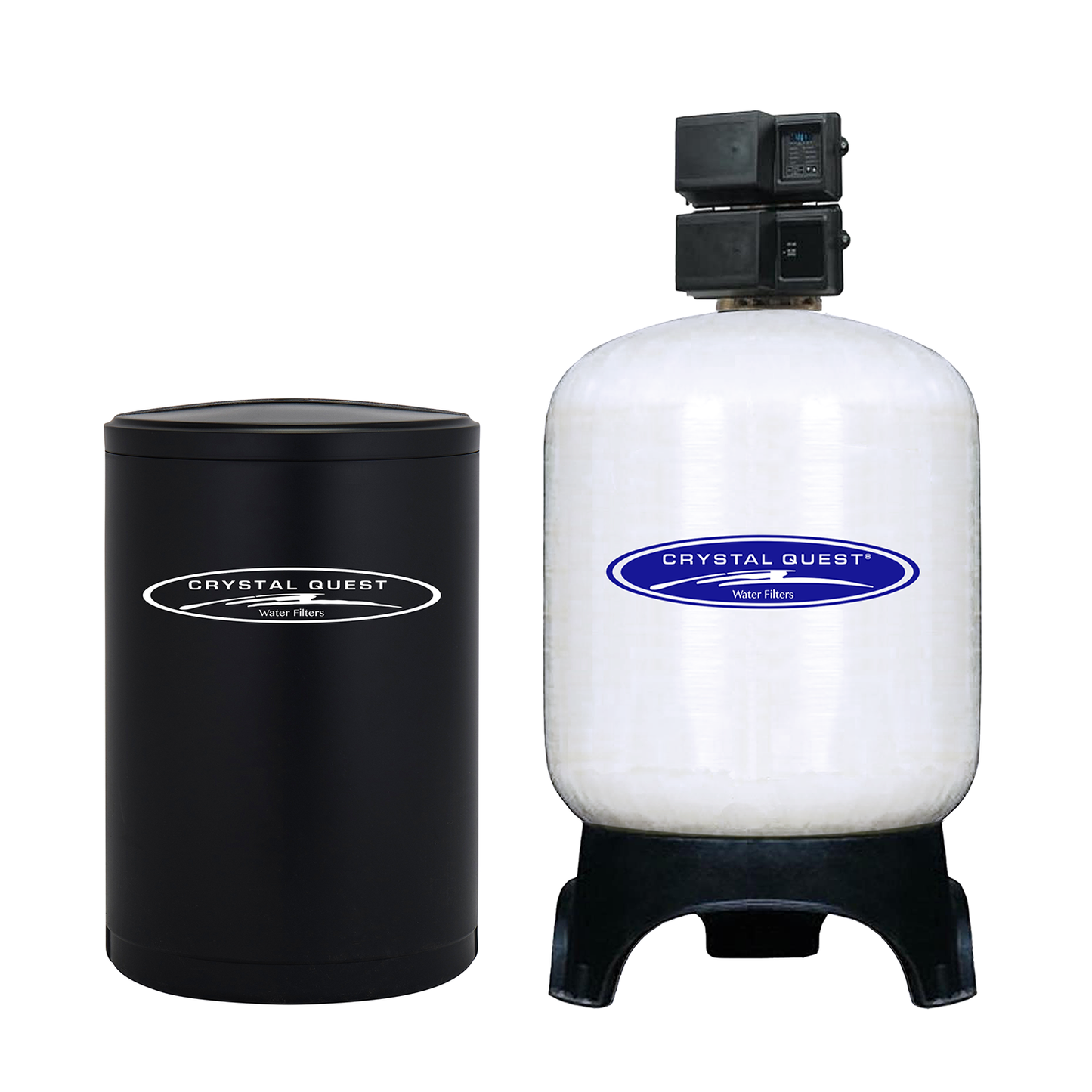

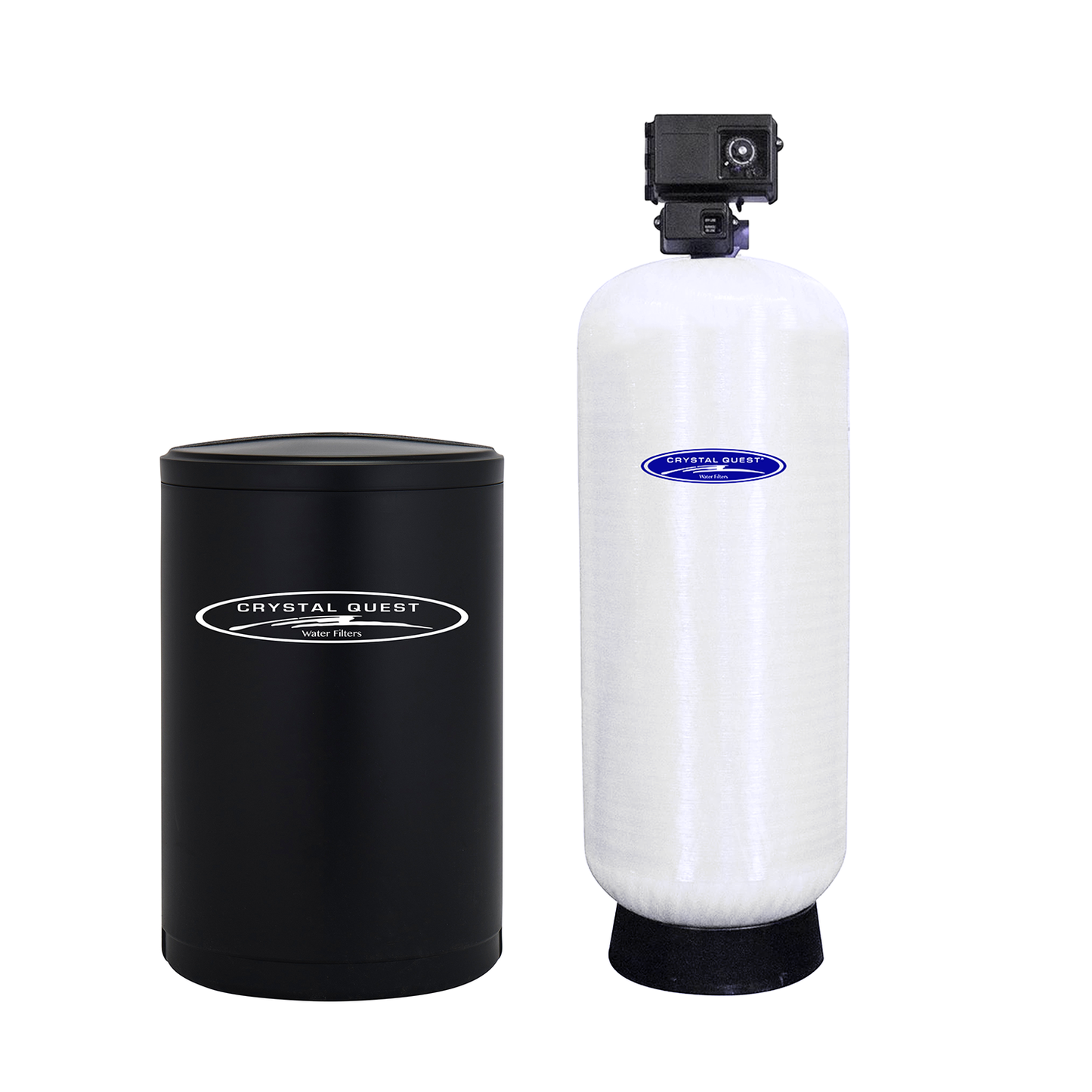

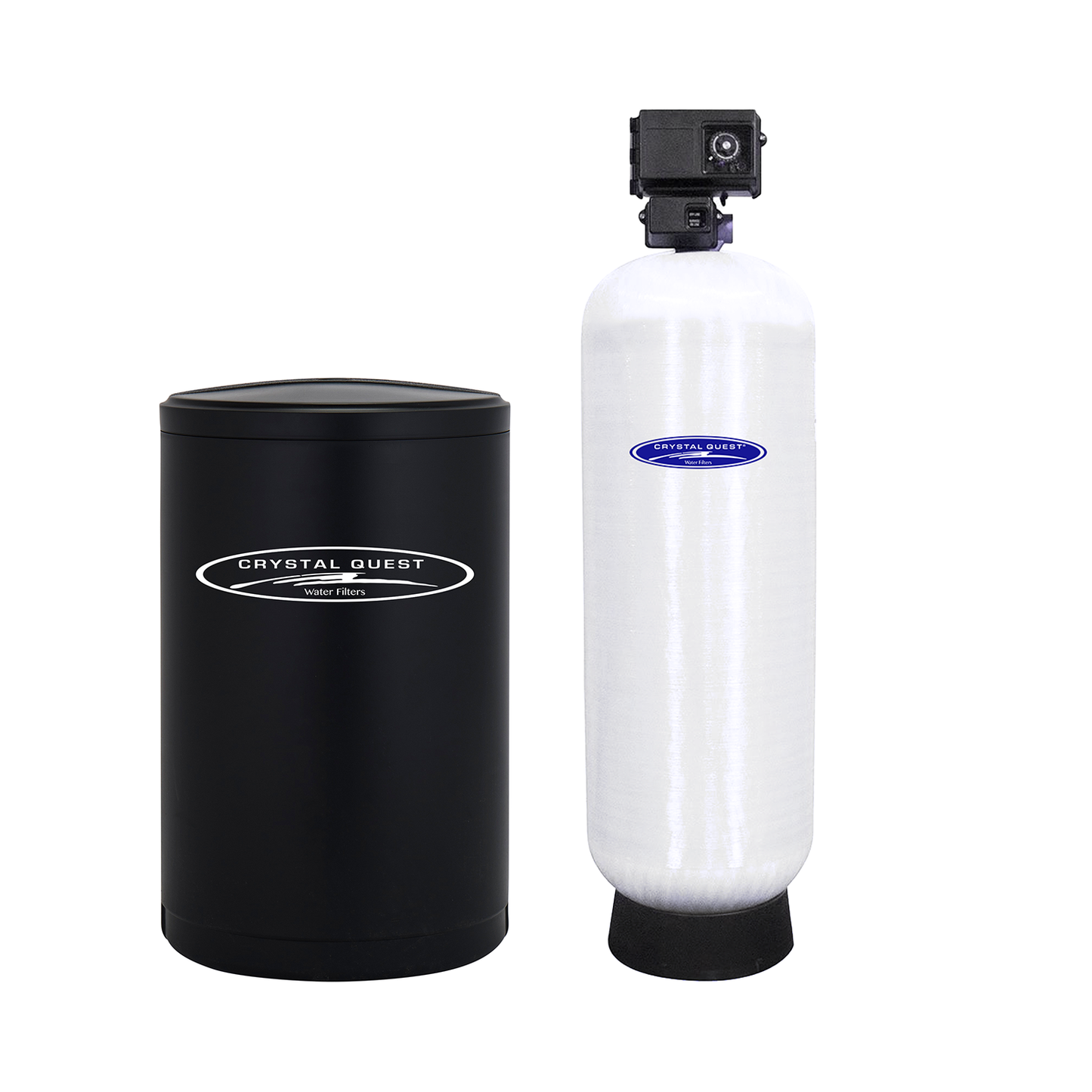

Lead Removal Water Filtration System
Lead Removal Water Filtration System
Couldn't load pickup availability
Share
Features
- Timer Control Valves
- Heavy-Duty Composite Fiberglass Tanks
- Heavy-Duty Brine Tank
- High Flow Distributor
- All brass, motor driven control valve with fully adjustable regeneration cycles
- Self-adjusting backwash controller
- Flow controller to limit backwash flow
- Engineered for commercial & industrial use
Benefits
- Reduced water consumption
- Reduced salt usage
- Engineered for commercial & industrial use
Add-Ons*
- Metered Control Valve
- Backwash or regeneration bypass
- 3200NT Controller
- No Hard Water Bypass
- NXT Upgrade Controller
- Duplex parallel, twin alternating, triplex (progressive)
- Optional skid mounting for tanks
*If you are interested in our available Options, please call to have them added to your system.
Lead (Pb) is a soft and heavy metal used in a surprisingly wide range of industrial applications and processes. It is a highly poisonous neurotoxin that can accumulate in both soft tissue and bone, leading to brain and nervous system disorders. Exposure to lead is especially dangerous for young and developing children. Most commonly it is introduced to the human body by ingestion of contaminated water and food, although it can be introduced through inhalation and direct contact as well.
How It Works
Our SMART Multimedia is a special house blend of 2 types of coconut-shell GAC (including Catalytic) with 2 types of Eagle Redox Alloys® (9500 & 6500) and anion exchange resin. This blend effectively reduces and removes heavy metals, chlorine & chloramine, pesticides & herbicides, pharmaceutical by-products & other inorganic substances such as petroleum byproducts. This blend will help the oxidation process of the lead for easier removal. To read about the ERA® Oxidation/Reduction Process, click here. In addition to the oxidation process, we also include the Crystal Quest Eagle Softener Resin which is a strong acid cation exchange resin. It should be regenerated with either potassium chloride or sodium chloride. Typically, it requires about 10% more salt to regenerate with potassium chloride salt when compared to sodium chloride salt. The advantage of potassium salt is that it does not contribute to a high sodium diet and the backwash can be discharged onto a lawn or garden. Sodium chloride salt will kill plants, so it must be discharged into a sewer system. Salt and Iron Out remove iron levels up to 4 ppm. Media can be regenerated at 8, 12 and 15 lbs. per ft3 salt dosages.
Compatible Valves:
GPM:15
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:20 - 35
2850 Automatic Control Head
This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 1 1/2” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 60 GPM
- backwash capacity of 47 GPM
- valves use all brass material
- Fully adjustable 5-cycle control
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
2850 Automatic Control Head
This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 1 1/2” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 60 GPM
- backwash capacity of 47 GPM
- valves use all brass material
- Fully adjustable 5-cycle control
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
GPM:60 - 75
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
GPM:200 - 390
3900 Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
3900 Automatic Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:15 - 75
Manual Backwash Control
Features:
- easy operation
- Manual Filter Valve, Top Mount, 1" In/Out, 1" Female Drain, 1.05" OD Riser, 2.5" 8-NPSM Connection
- Manual Filter Valve, Top Mount, 2" In/Out, 1.5" Female Drain, 1.5" OD Riser, 4" 8-UN Connection
Manual Backwash Control
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
GPM:15 - 75
Manual Upflow Head
Features:
- No electricity and no back wash
- easy operation
- can be either up or down flow simply by plumbing it backwards
- Tank Head, UPVC, 2.5"-8NPSM Opening (1" NPT IN/OUT, 1" NPT Center Riser)
- Tank Head, UPVC, 4"-8UN Opening (2" NPT IN/OUT, 1.5" NPT Center Riser)
3900 Automatic Control Head
This robust and versatile control valve is designed to provide superior performance for both filtration and softening applications. With its advanced timer and metering options, the Vtrol V39 ensures precise control and efficient water management.
Features:
- NXT Display Controller
- 3" BSP female connections and 6" tank adaptersr
- valves use all brass material
- Supports both downflow (DF) and upflow (UF) regeneration
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- Meter Valves
###
| Specification | CQE-CO-02174 | CQE-CO-02175 | CQE-CO-02176 | CQE-CO-02177 | CQE-CO-02178 | CQE-CO-02179 | CQE-CO-02180 | CQE-CO-02181 | CQE-CO-02182 |
|---|---|---|---|---|---|---|---|---|---|
| Service Flow Rate GPM | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 245 | 390 |
| Peak Flow GPM | 22 | 41 | 60 | 95 | 140 | 250 | 270 | 280 | 450 |
| Backwash Flow GPM | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 | 75 |
| Pipe Size | 1" | 1.5" | 1.5" | 2" | 2" | 2" / 3" | 3" | 3" | 3" |
| Electronic Control Valve | 2510 | 2850 | 2850 | 2900 | 2900 | 3150 / 3900 | 3900 | 3900 | 3900 |
| Lead Multimedia | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 60 ft³ |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Media Tank Size (in.) | 14" x 65" | 16" x 65" | 21" x 62" | 24" x 72" | 30" x 72" | 36" x 72" | 42" x 72" | 48" x 72" | 63" x 83" |
| Space Required (Media Tank Only) | 16" x 75" | 18" x 75" | 23" x 84" | 24" x 95" | 32" x 95" | 40" x 192" | 46" x 192" | 52" x 192" | 67" x 203" |
| Brine Tank Dimensions | 18" x 33" | 24” x 41” | 30” x 50” | 39” x 48” | 39” x 60” | 51” x 51” | 51” x 63” | 51” x 63” | 51” x 63” |
| Brine Tank Capacity | 130L / 36G | 304L / 80G | 580L / 153G | 884L / 233G | 1106L / 292G | 1696L / 448G | 2000L / 528G | 2000L / 528G | 2000L / 528G |
| Space Required (Media + Brine Tank) | 30" x 20" x 75" | 42" x 26" x 75" | 53" x 32” x 84" | 65" x 41” x 95" | 71" x 41” x 100" | 91" x 53” x 192" | 91" x 53” x 192" | 103" x 53” x 192" | 118" x 53” x 203" |
| Quartz (lbs.) | 30 | 40 | 70 | 100 | 150 | 200 | 300 | 400 | 600 |
###
| Consumables | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model No. | CQE-CO-02174 | CQE-CO-02175 | CQE-CO-02176 | CQE-CO-02177 | CQE-CO-02178 | CQE-CO-02179 | CQE-CO-02180 | CQE-CO-02181 |
| Lead Media | 3ft3 | 4ft3 | 7ft3 | 10ft3 | 15ft3 | 20ft3 | 30ft3 | 40ft3 |
| Quartz (lbs.) | 30 | 80 | 100 | 200 | 400 | 500 | 700 | 900 |
| Filtration Media Information | ||
|---|---|---|
| Product Data Sheet | Safety Data Sheet | |
| Eaglesorb Water Softener | Eaglesorb Water Softener Product Data Sheet | Eaglesorb Water Softener Safety Data Sheet |
| Coconut GAC | Coconut GAC Product Data Sheet | Coconut GAC Safety Data Sheet |
| Catalytic GAC | Catalytic Coconut GAC Product Data Sheet | Catalytic Coconut GAC Safety Data Sheet |
| ERA 6500 & 9500 | ERA 6500 & 9500 Product Data Sheet | ERA 6500 & 9500 Safety Data Sheet |
| Ion Exchange | Ion Exchange Resin Product Data Sheet | Ion Exchange Resin Safety Data Sheet |
###
