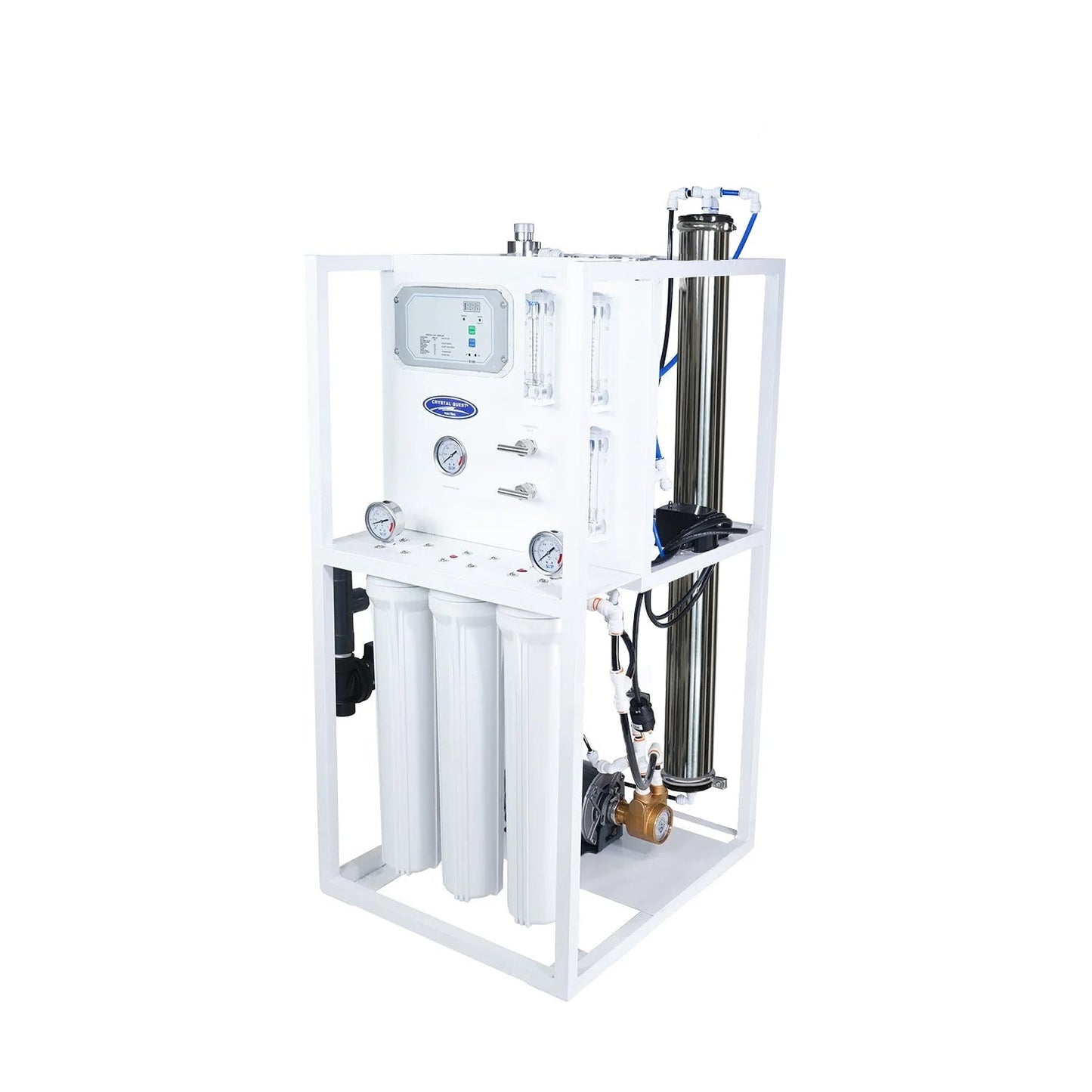

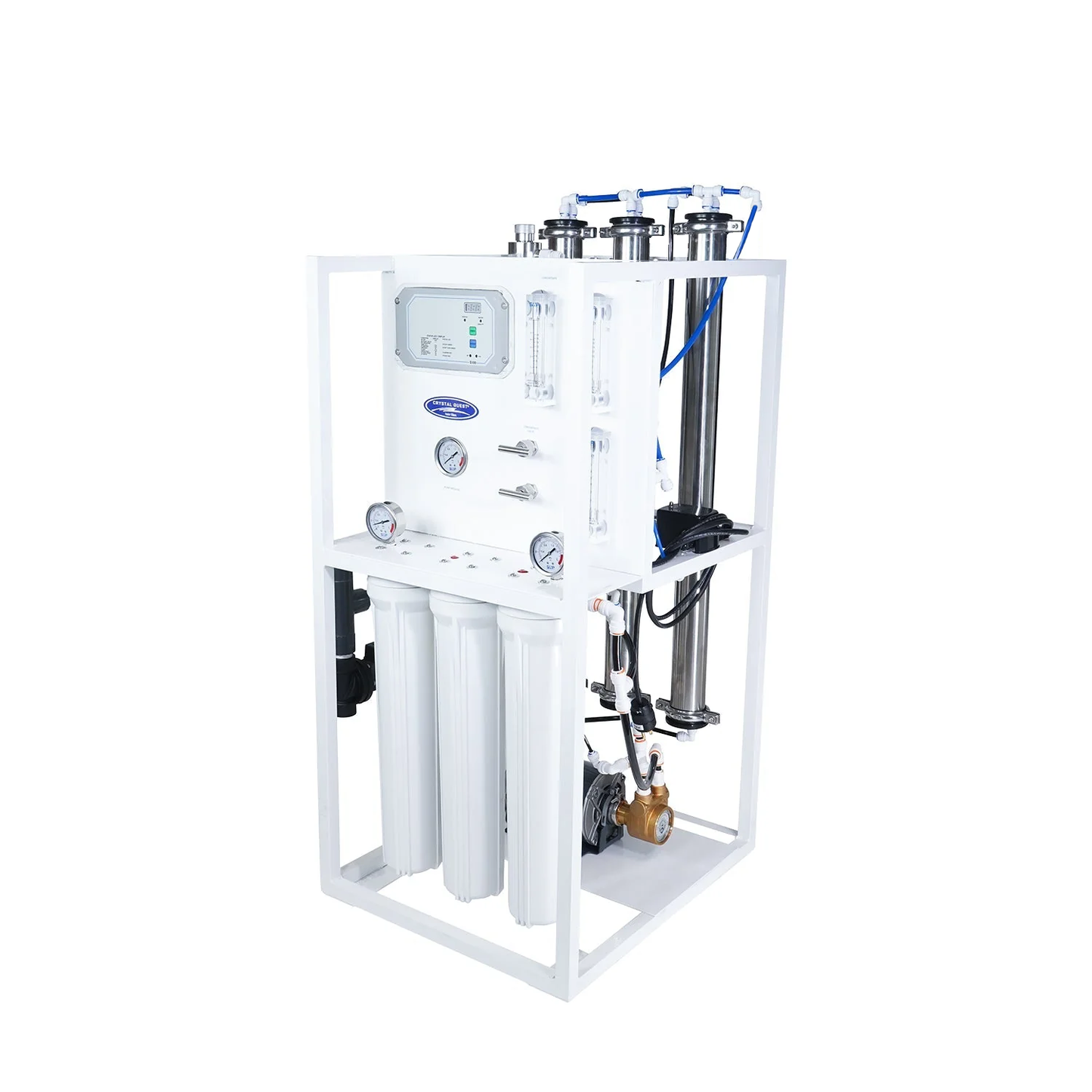

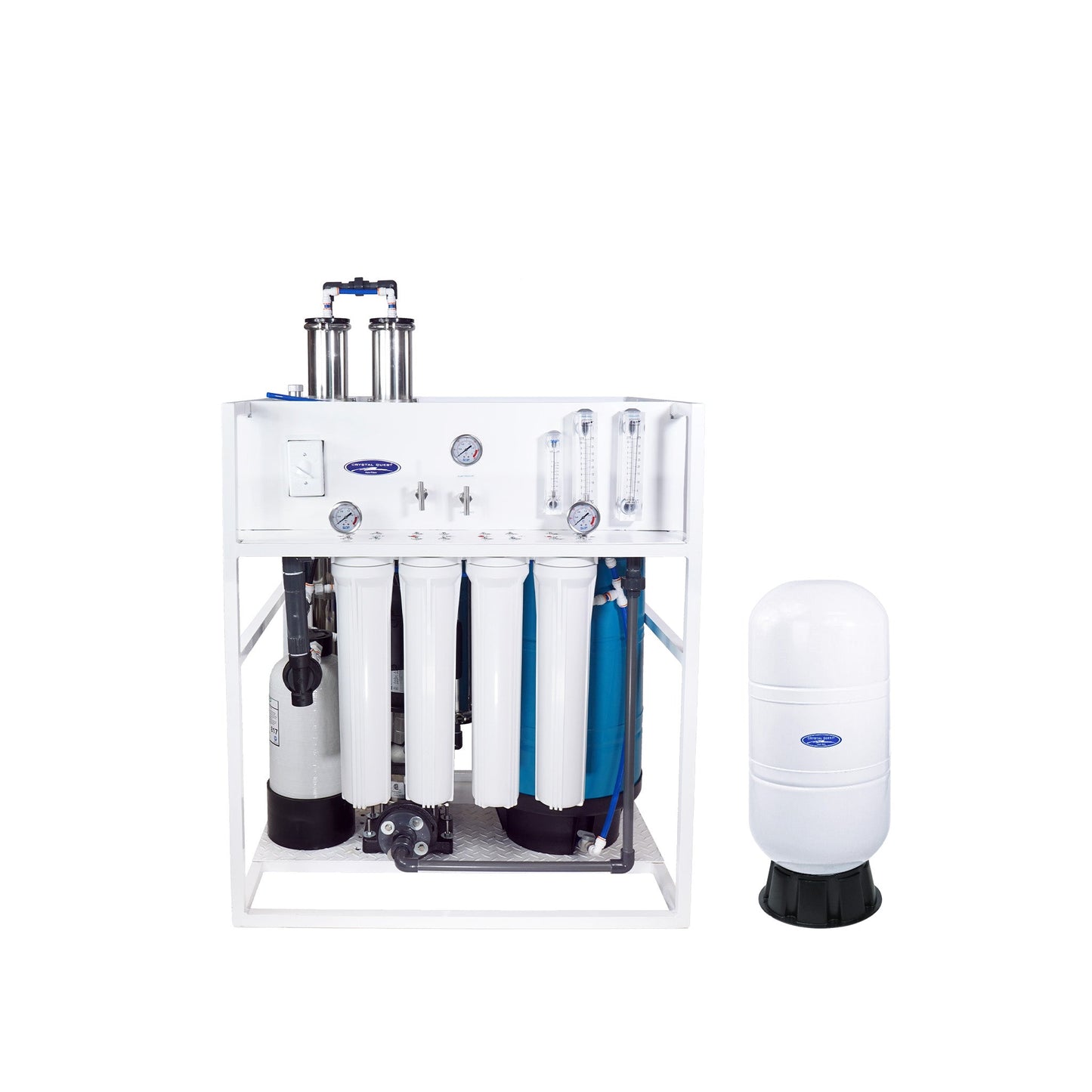

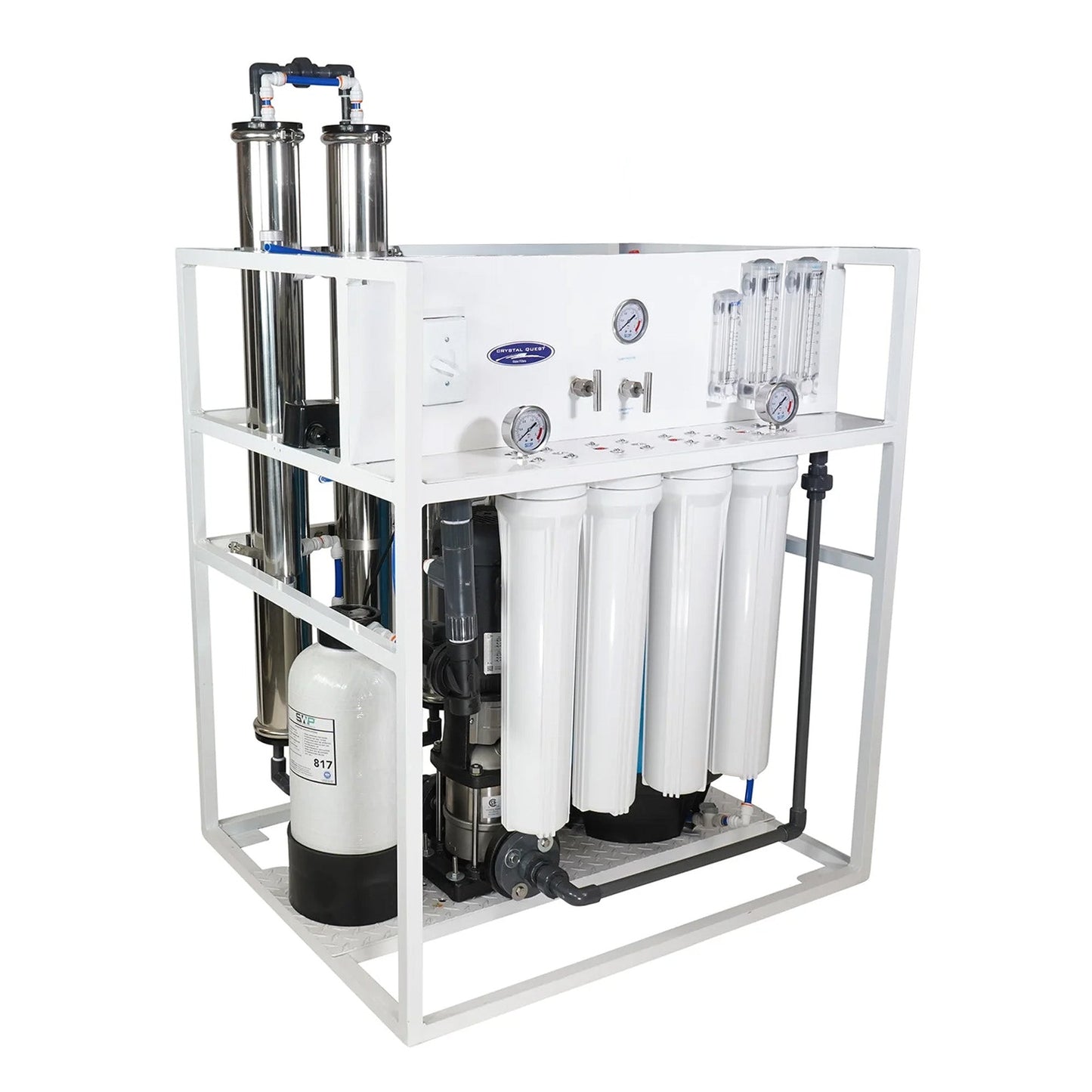

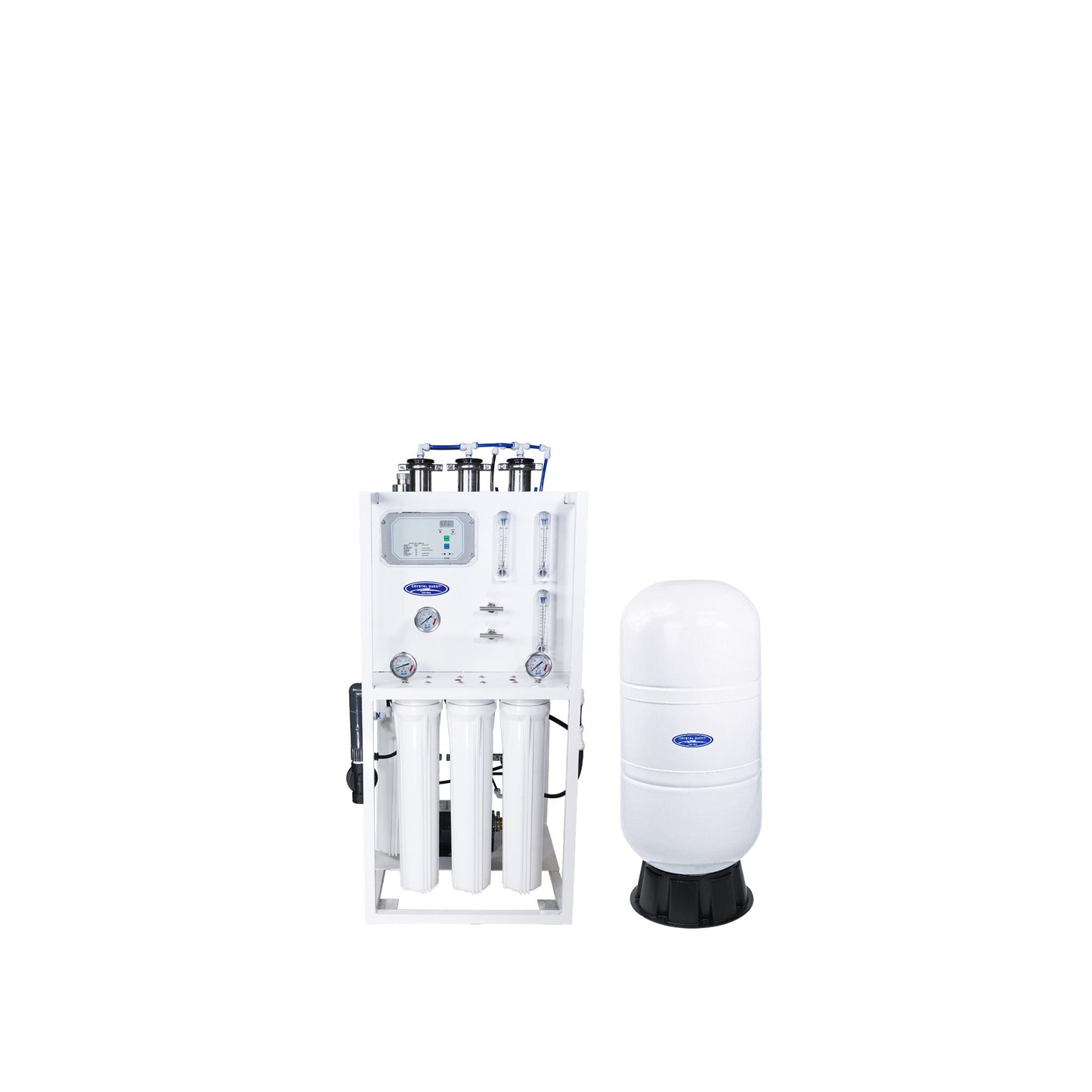

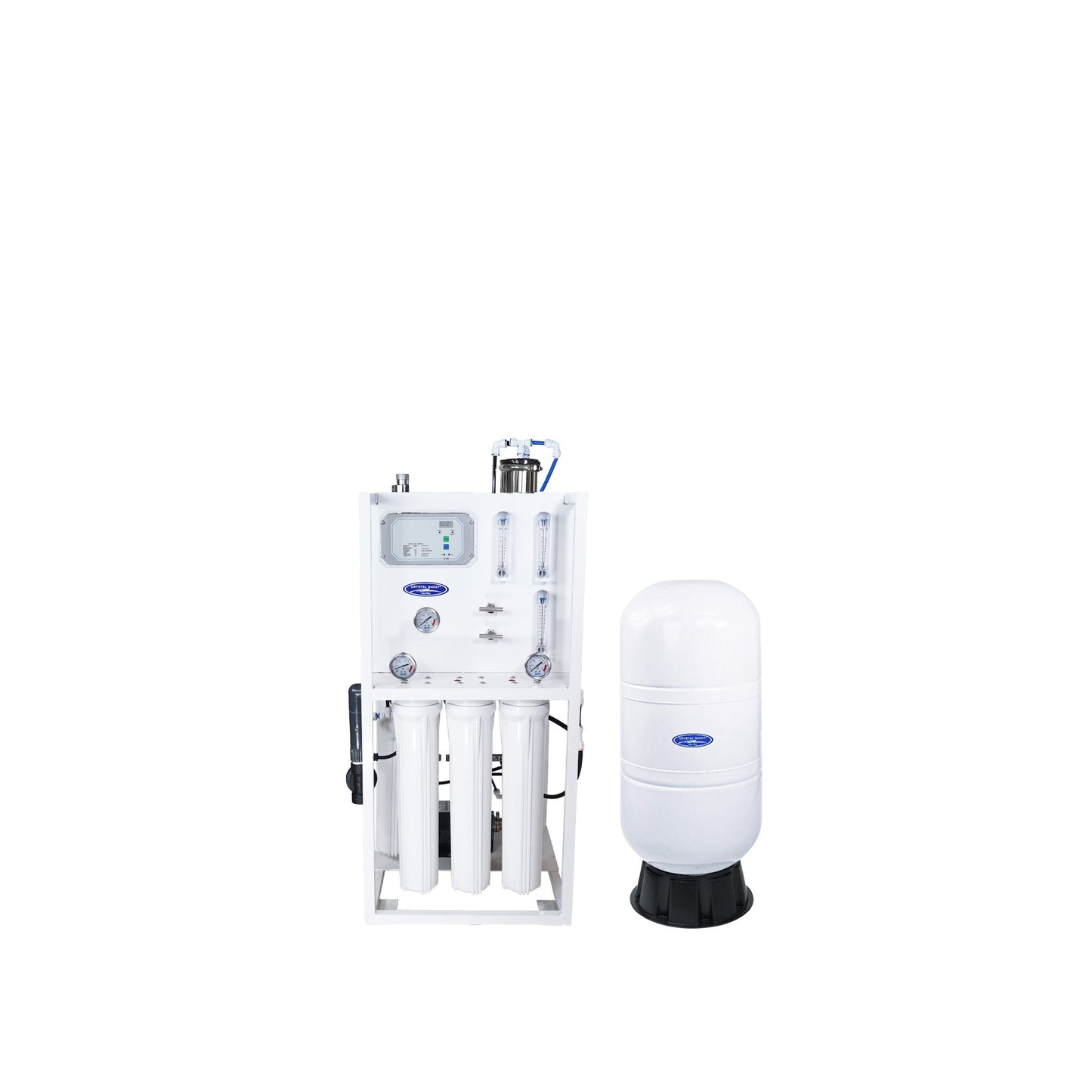

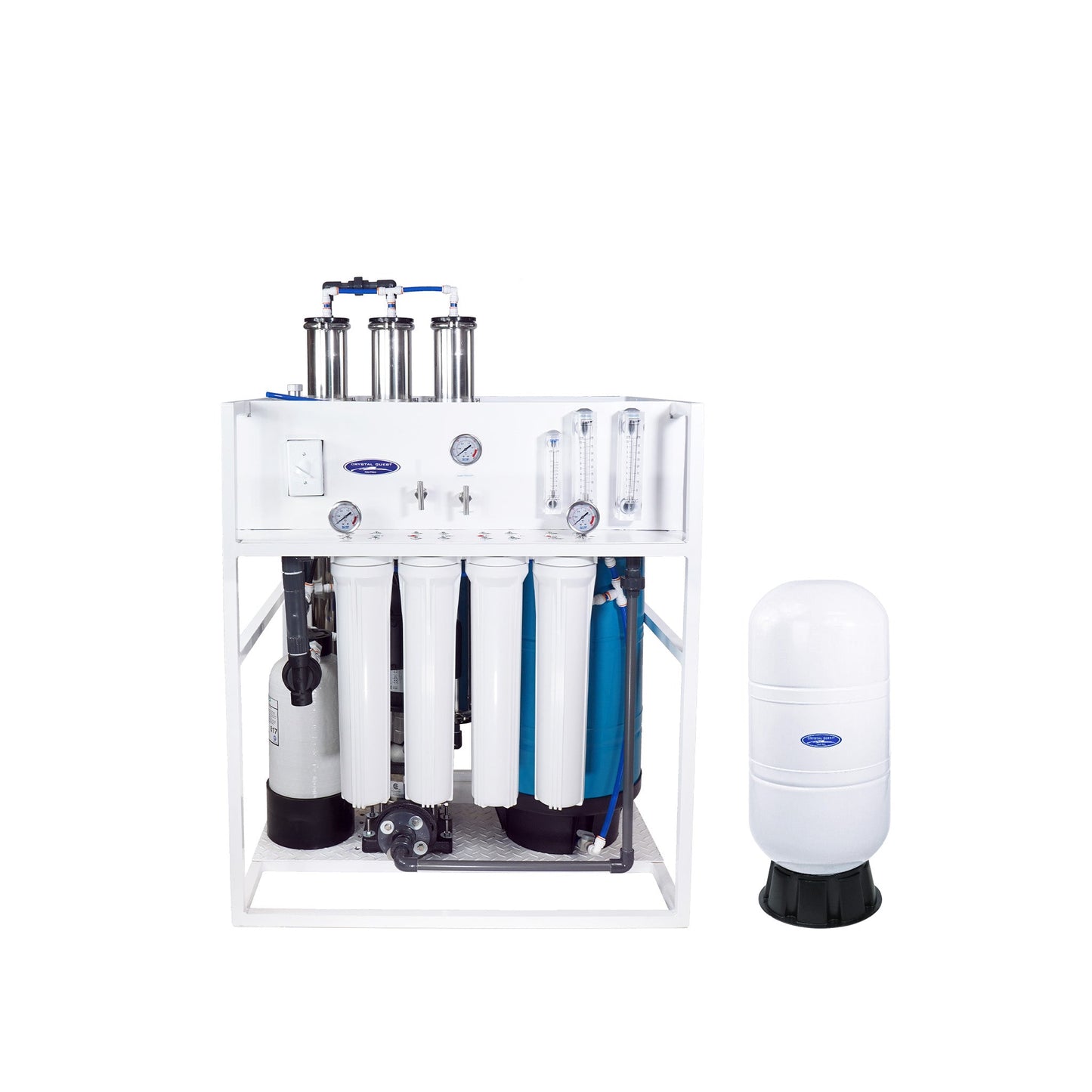

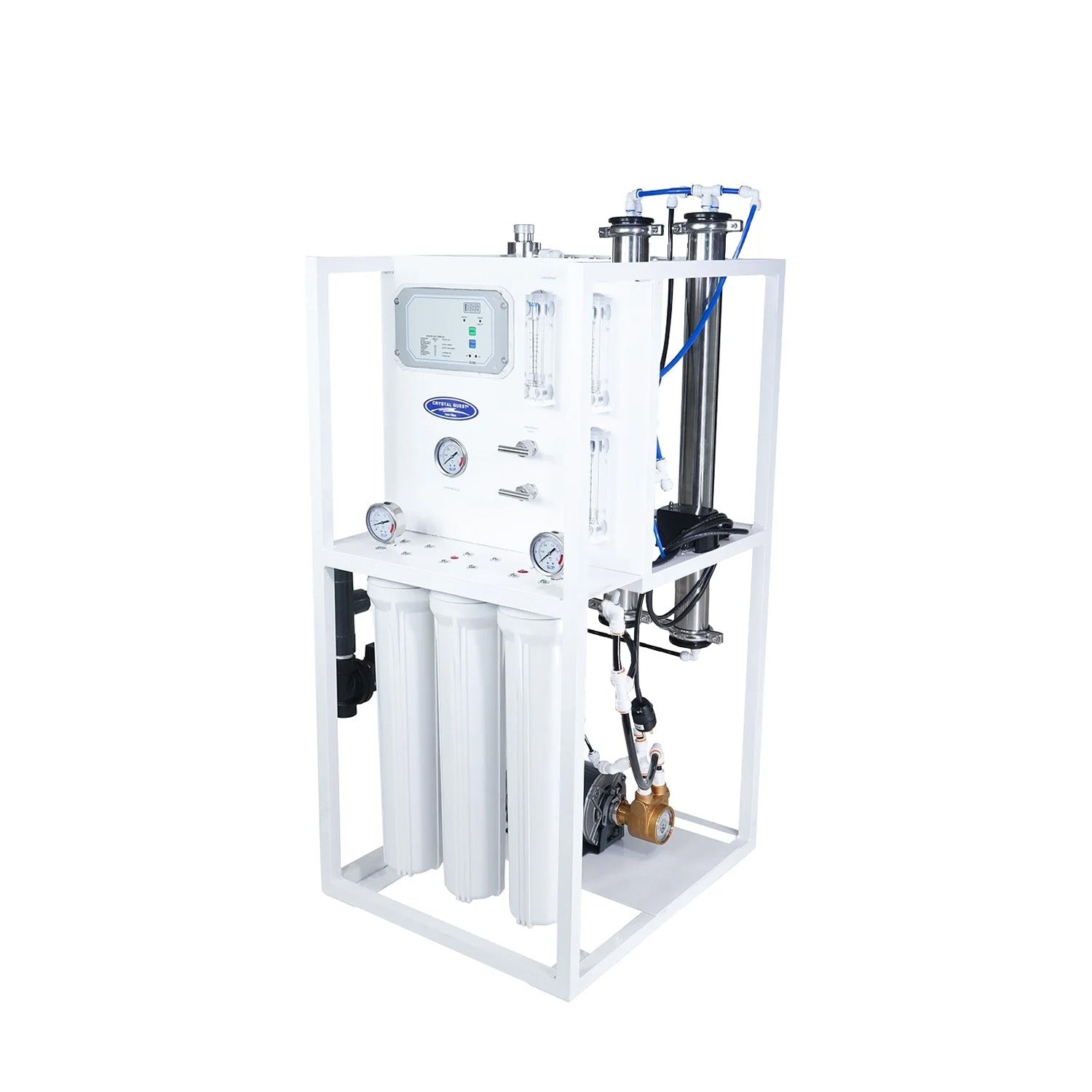

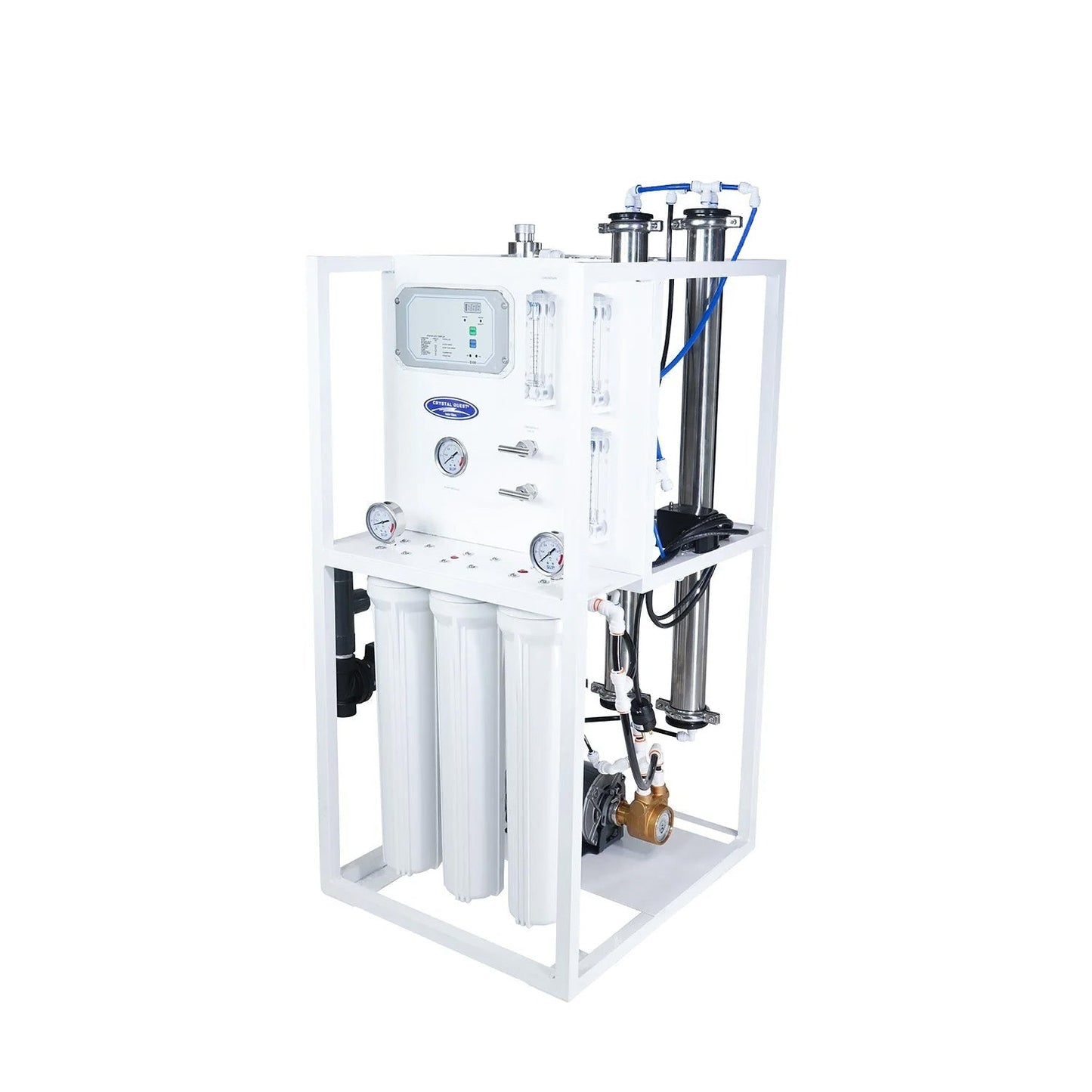

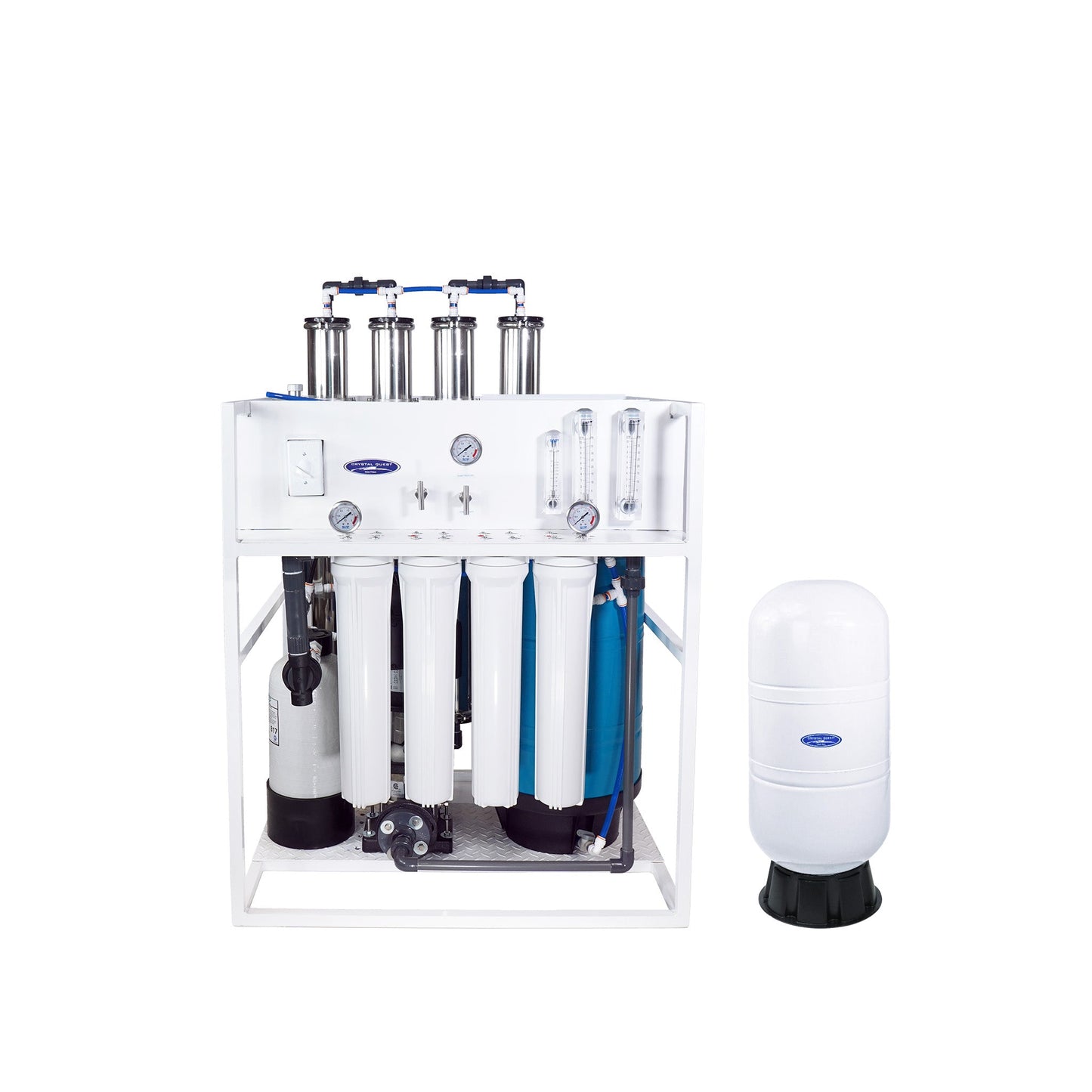

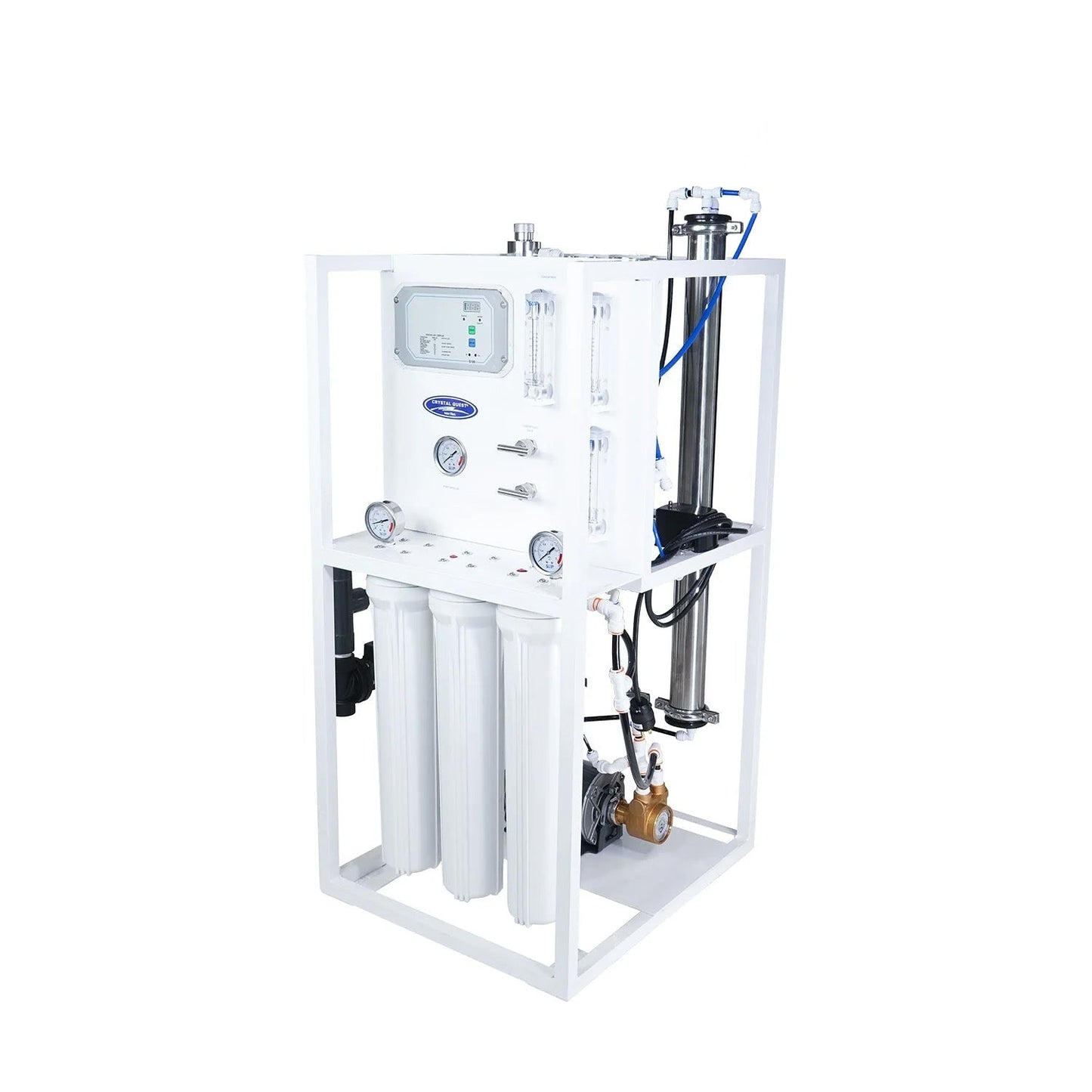

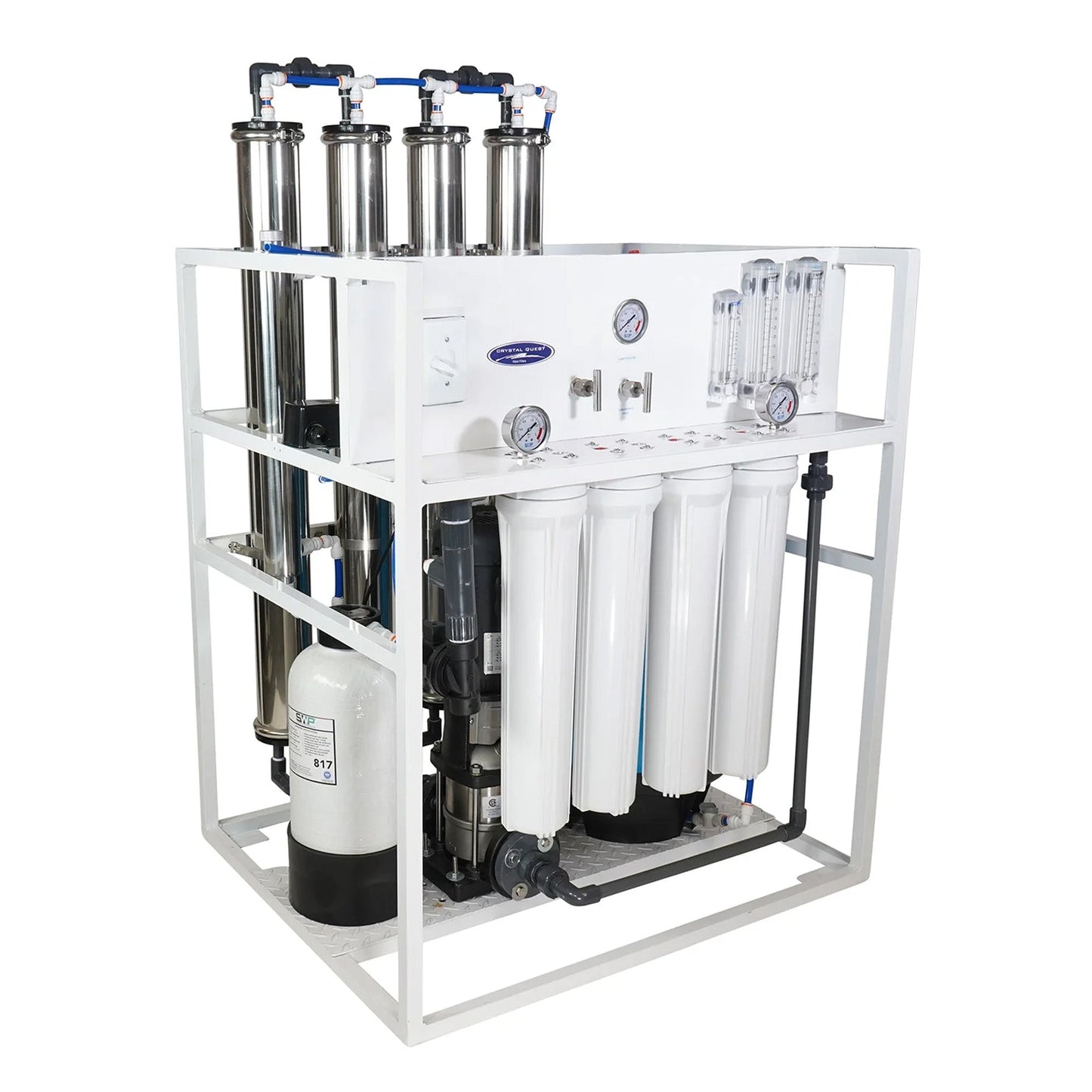

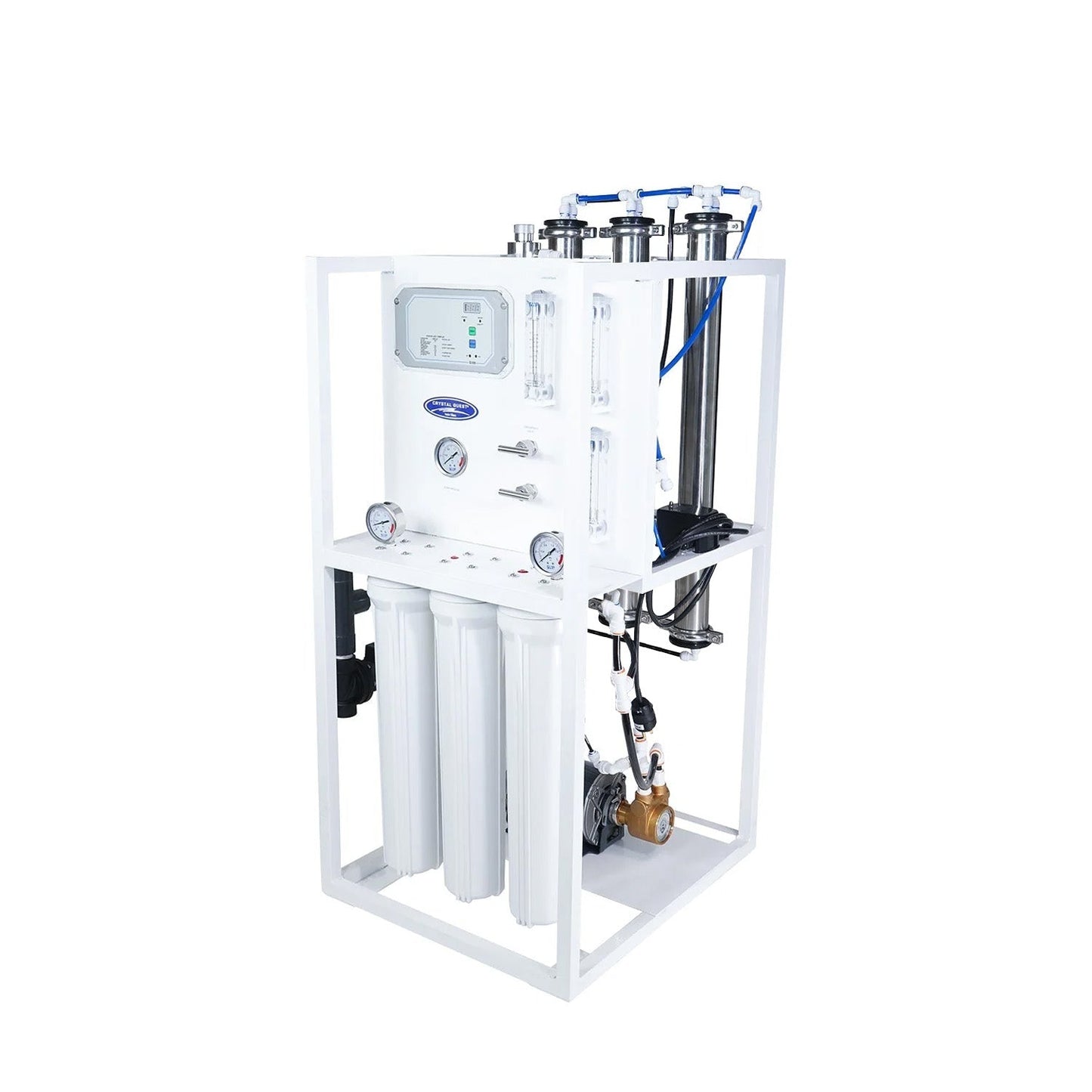

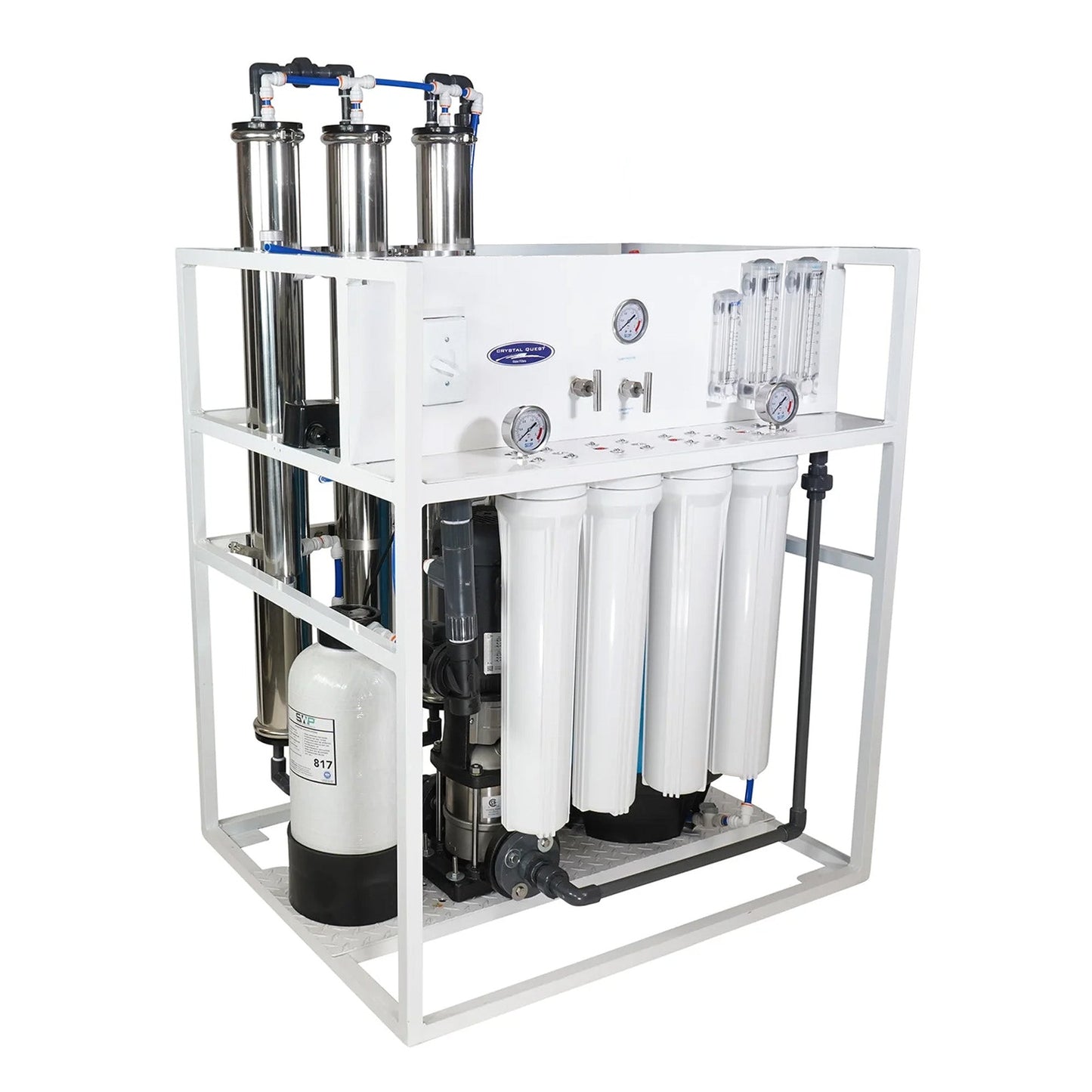

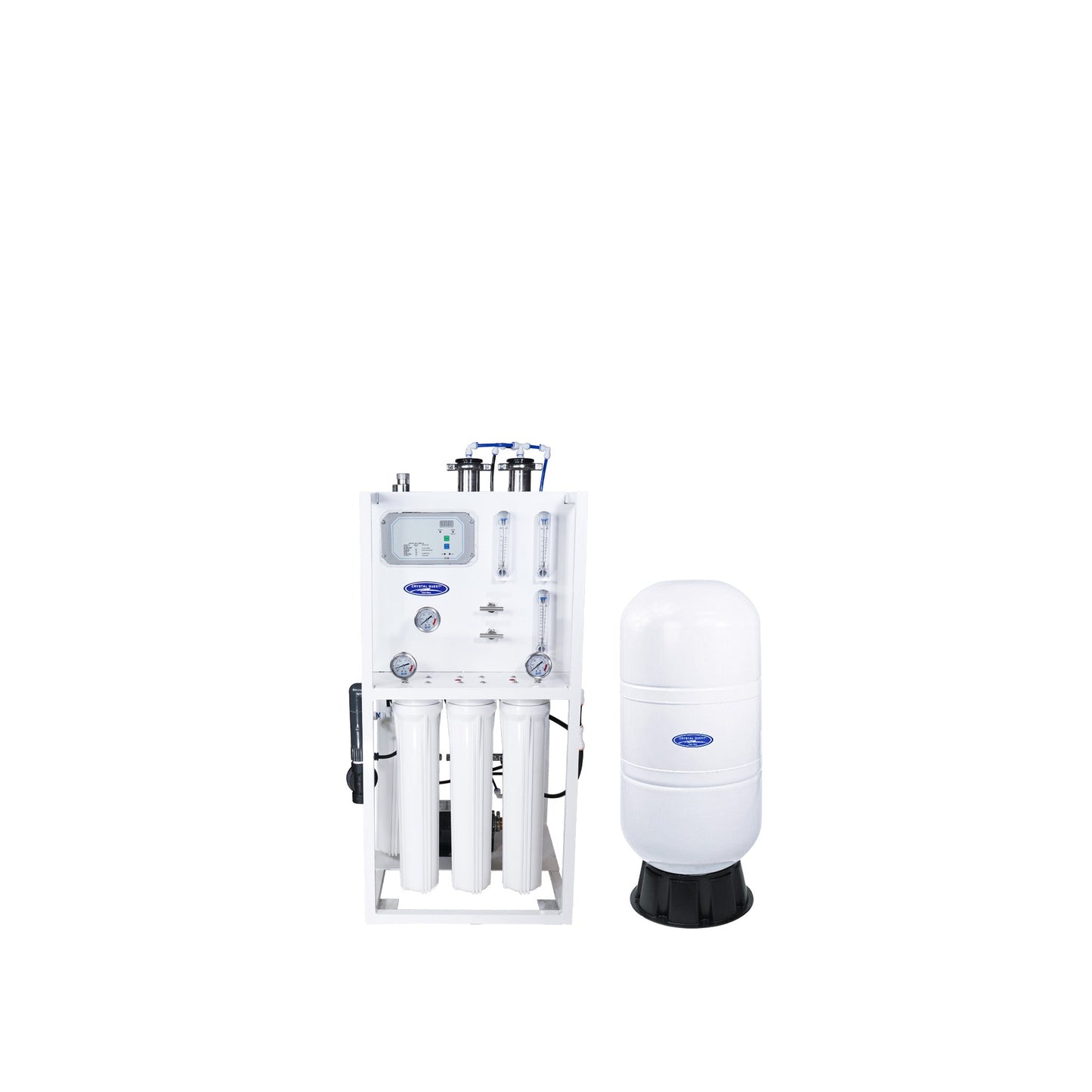

Medical Mid-Flow Reverse Osmosis System (500-7000 GPD)
Medical Mid-Flow Reverse Osmosis System (500-7000 GPD)
Couldn't load pickup availability
Share
Standard Features:
- Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
- Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
- Brass Rotary Vane High-Pressure Pump designed for continuous use and built-in protection for loss of feedwater protection
- High-Efficiency Carbonate Motor
- SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
- SWP Flow meter: to display permeate and concentrated water flow
- SWP 0-100 psi Pre-filter pressure gage Indicator to aids on timely cartridges change
- SWP 0-300 psi pump pressure gauge indicator pump pressure gauge reading range from 120 – 200.
- Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry.
- High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure. No need for expensive “plug/play”.
- 1” Feed solenoid valve. Automatically shuts off the feed water to the system.
- Push/Pull fittings with locking safety clips
Benefits:
- Compact Space Saving
- Components Easily Accessible
- Expandable and Lightweight Design
- Fully Equipped and Customizable
- Pre-plumbed, wired and assembled
- Low Operation Costs
- Low Maintenance Costs
- Easily Maintenance and servicing
- Factory Tested and Preserved
- CE Compliant
- 1-Year Limited Warranty
- Made in the USA
Upgrades:
All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.
- Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
- Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
- SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
- SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
- SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
- S150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display and alarm function.
- Chemical Pump Outlet: Provide an integrated power source with the RO system for connection of a chemical feed pump.
- Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
- Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
- 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
- Single Wood Crate
###
Gallons Per Day (GPD) @ 77° F
| 500 | 750 | 1000 | 1500 | 1800 | 2500 | 4000 | 5000 | 7000 | |
|---|---|---|---|---|---|---|---|---|---|
| Model | CQE-CO-02024 | CQE-CO-020024 | CQE-CO-02025 | CQE-CO-02026 | CQE-CO-020027 | CQE-CO-02027 | CQE-CO-02028 | CQE-CO-02029 | CQE-CO-02030 |
| Dimensions | 14" x 20" x 27" | 14" x 20" x 27" | 14" x 20" x 27" | 14" x 20" x 46" | 14" x 20" x 46" | 19" x 23" x 46" | 19" x 23" x 46" | 30" x 38" x 47" | 30" x 38" x 47" |
| Weight (lbs) | 140 | 140 | 145 | 160 | 160 | 180 | 235 | 250 | 265 |
| Concentrate Re-Circulate | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Auto Flush | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Membrane Size | 2521 TFC HF1 | 2540 TFC HF1 | 2521 TFC HF1 | 2540 TFC HF1 | 4040 TFC HF1 | 2540 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 |
| # of Membranes | 2 | 1 | 3 | 2 | 1 | 3 | 2 | 3 | 4 |
| Motor HP | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 3/4 | 1.5 | 1.5 | 1.5 |
| Voltage (volts AC) | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 |
| Hertz (cycles) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Feed Connection | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" | 1" | 3/4" |
| Product Connection | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 1" | 1" | 1" |
| Waste Connection | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 1" | 1" | 1" |
| Minimum Feed Pressure | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi |
| Minimum NaCl - % Rejection | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% |
| Minimum Feed (GPM) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 4 | 6 | 7 | 10 |
| Maximum Hardness (GPG) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Maximum TDS | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm |
| Operating Pressure | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi |
| Maximum NaCl - % Rejection | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% |
| Maximum Feed (GPM) | 3 | 3 | 3 | 5 | 5 | 10 | 15 | 15 | 15 |
| pH Range | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 |
Dimensions (L x W x H) - Commercial RO’s
| GPD | Dimensions (L x W x H) |
|---|---|
| 200 GPD | 17” x 23” x 35” |
| 300 GPD | 17” x 23” x 35” |
| 500 GPD | 24” x 25” x 55” |
| 750 GPD | 24” x 25” x 55” |
| 1,000 GPD | 24” x 25” x 55” |
| 1,500 GPD | 24” x 25” x 55” |
| 1,800 GPD | 24” x 25” x 55” |
| 2,500 GPD | 24” x 25” x 55” |
| 4,000 GPD | 31” x 38” x 56” |
| 5,000 GPD | 31” x 38” x 56” |
| 7,000 GPD | 31” x 38” x 56” |
| 10,000 GPD | 31” x 58” x 64” |
###
|
SYSTEM |
CARTRIDGE |
SKU |
|
500 GPD |
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 9-3/4” SMART Filter Cartridge |
|
|
|
(2) 2.5” x 21” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
750 GPD |
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 9-3/4” SMART Filter Cartridge |
|
|
|
2.5” x 40” Freshwater Reverse Osmosis Membrane |
|
|
|
|
|
|
1000 GPD |
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 9-3/4” SMART Filter Cartridge |
|
|
|
(3) 2.5” x 21” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
1500 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
(2) 2.5” x 40” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
1800 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
CQE-RC-04030 |
|
|
4” x 40” Freshwater Reverse Osmosis Membrane |
|
|
|
|
|
|
2500 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
(2) 2.5” x 40” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
4000 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
CQE-RC-04034 |
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge |
|
|
|
(2) 4” x 40” Freshwater Reverse Osmosis Membranes |
|
|
|
|
|
|
|
|
|
|
5000 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge |
|
|
|
(3) 4” x 40” Freshwater Reverse Osmosis Membrane |
|
|
|
|
|
|
7000 GPD |
4-5/8” x 20” Pleated Cellulose Sediment Cartridge |
|
|
|
4-5/8” x 20” GAC Filter Cartridge |
|
|
|
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge |
|
|
|
4-5/8” x 20” SMART Filter Cartridge |
|
|
|
(4) 4” x 40” Freshwater Reverse Osmosis Membrane |
###
